1.240 / 1.250 in Round Negative with Hole and Countersink
1.240 / 1.250 in Round Negative with Hole and Countersink
SKU:TUR-e410c0
The precision-crafted Round Negative with Hole and Countersink, 1.240 / 1.250 in diameter, ideal for turning blanks. Custom grade options available upon request.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
1.240 / 1.250 in Round Negative with Hole and Countersink
$24.99
Quantity: 1
Claim Your Seller Account
1.240 / 1.250 in Round Negative with Hole and Countersink
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

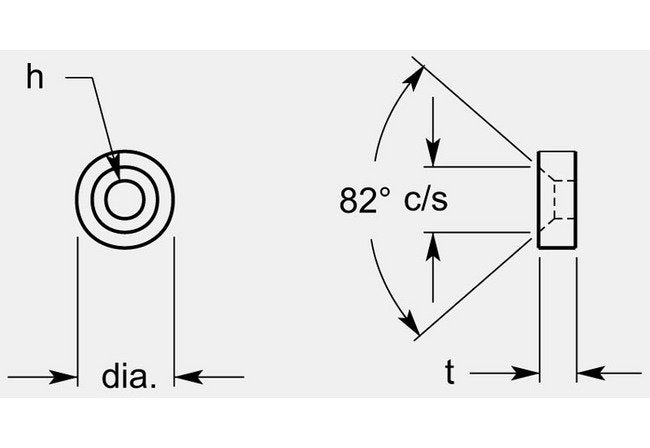

The 1.240 / 1.250 in Round Negative with Hole and Countersink is precision-crafted for turning blanks, featuring a thickness of 0.515 / 0.525 inches and an 82° angle. With a 0.262 / 0.268-inch hole and a countersink diameter of 0.662 / 0.672 inches, this product excels in durability and accuracy. Grade availability can be customized upon request, ensuring suitability for varied applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensional Specification Angle A
82 º
Dimensional Specification Chamf
0.030 in x 45°
Dimensional Specification Cs
0.662 / 0.672 in
Dimensional Specification Dia
1.240 / 1.250 in
Dimensional Specification Hole
0.262 / 0.268 in
Dimensional Specification Thickness T
0.515 / 0.525 in
Grade Availability Grade Availability
Available on Request
