1.25in Check-All® HV Style Flanged Check Valve
1.25in Check-All® HV Style Flanged Check Valve
SKU:HVS-0533a8
Check-All® HV Style Flanged Check Valve for high flow rates & low pressure drops. Sizes 1-10 in, CF8M/WCB/WCC material, ANSI Class 150 flanges.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
1.25in Check-All® HV Style Flanged Check Valve
$79.99
Quantity: 1
Claim Your Seller Account
1.25in Check-All® HV Style Flanged Check Valve
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check-All® HV Style Flanged Check Valve offers reliable one-piece cast body construction with ASME/ANSI B16.5 Class 150 flanged ends, ideal for high flow rates and reduced pressure drops. This valve, available in sizes 1-10 inches, features CF8M stainless steel or WCB/WCC carbon steel materials, ensuring durability and compatibility with ANSI Class 150 flanges. With customizable seat and spring materials, the valve delivers a standard cracking pressure of 1.50 psi, providing a versatile solution for various applications.
Product Specifications
Additional Information

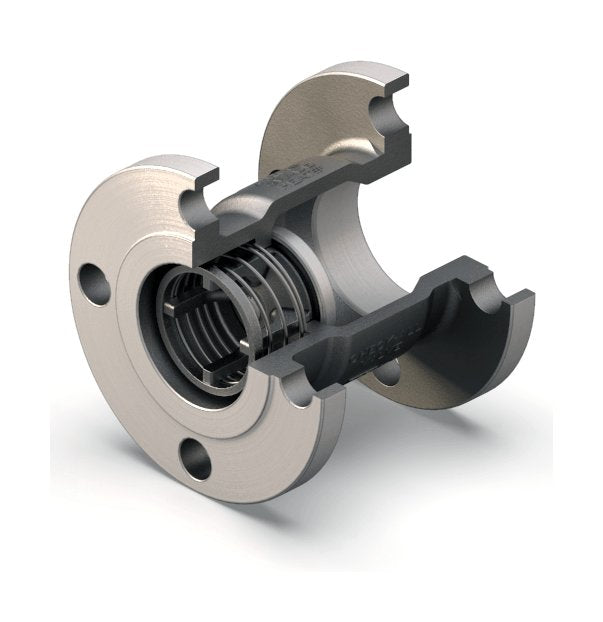

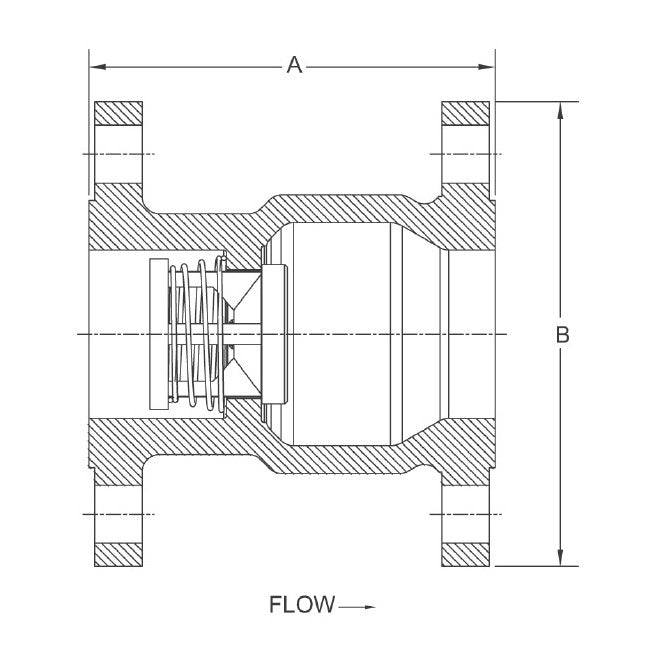

The Check-All® Flanged and Drilled (HV) check valve is a one-piece cast full-bodied spring loaded check valve with ANSI/ASME B16.5 Class 150 flanged ends. The HV series spring check valve is used when higher flow rates and lower pressure drops are required. The valve is available in sizes 1 through 10 inches and standard materials of CF8M (cast 316 stainless) and WCB/WCC (cast carbon steel). This check valve is designed for use with mating ANSI class 150 flanges. Other materials are available upon request.
Note
Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.
Specifications Body Material Availability
CF8M Stainless Steel = SS - Standard | Wrought Carbon Steel (WCB/WCC) - Standard
Specifications Cast Body Material
CF8M Stainless Steel = SS | Wrought Carbon Steel (WCB/WCC) = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1-1/4 in
Specifications Non Shock Pressure Rating
American Society of Mechanical Engineers (ASME)/American National Standards Institute (ANSI) B16.5 Class 150
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
I
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
HV
