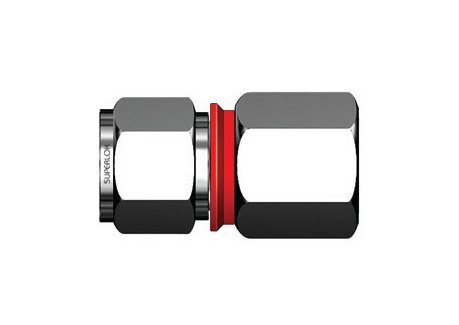

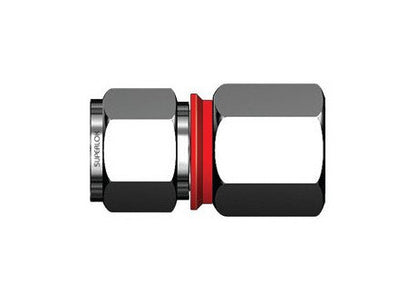

1/2in Tube 3/8in NPT Female Connector Fitting - SFCI Series
1/2in Tube 3/8in NPT Female Connector Fitting - SFCI Series
SKU:SFC-726ac0
Efficiently connect fractional tubes to male NPT threads with our SFCI Series Female Connector Fitting. Increase safety, productivity, and cost-efficiency.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
1/2in Tube 3/8in NPT Female Connector Fitting - SFCI Series
$24.99
Quantity: 1
Claim Your Seller Account
1/2in Tube 3/8in NPT Female Connector Fitting - SFCI Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SFCI Series 1/2 Inch Tube Outside Diameter and 3/8 Inch Thread Size Female Connector Fitting is a high-quality solution for connecting fractional tubes to male NPT threads. Crafted from a range of durable materials including Stainless Steel and Brass, this fitting features a patented i-Fitting design that enhances safety, productivity, and cost-efficiency. With a built-in check ring for perfect compression, this fitting is ideal for high-pressure and hazardous chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

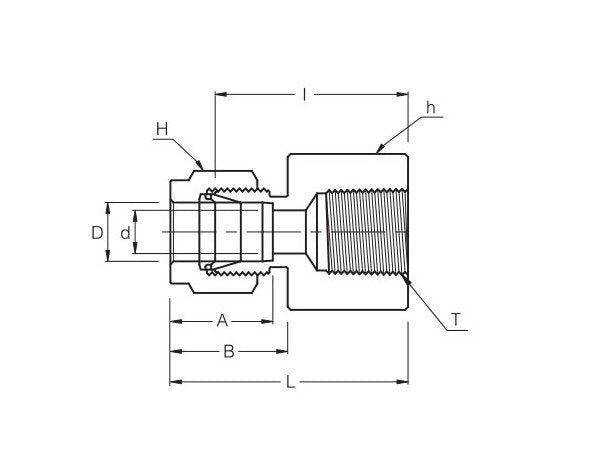

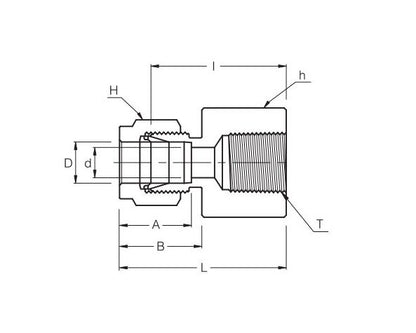

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
31.75 mm
Technical Specs Dimension L
41.91 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
10.41 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
3/8 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
