1 3/8" Chain Shackles Round Pin Hot Dip Galvanized

Name: 1 3/8" Chain Shackles Round Pin Hot Dip Galvanized
Brand: Lexco Cable Manufacturing
SKU: WIR-6870d1
Price: 69.99 USD
Availability: OutOfStock

SKU:WIR-6870d1

High-strength 1 3/8" Chain Shackles Hot Dip Galvanized - Meets Federal Specs, 13 1/2-ton WLL, perfect for heavy lifting tasks.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1 3/8" Chain Shackles Round Pin Hot Dip Galvanized Drop Forged is built to meet Federal Specification RR-C-271D, Type IVB, Grade A, Class 1 standards. With an impressive 13 1/2-ton working load limit and 6 times ultimate load capacity, this shackle offers exceptional strength and reliability. Quenched, tempered, and featuring an alloy pin, it ensures maximum durability. Ideal for lifting and towing applications, this shackle is a dependable choice for heavy-duty tasks.

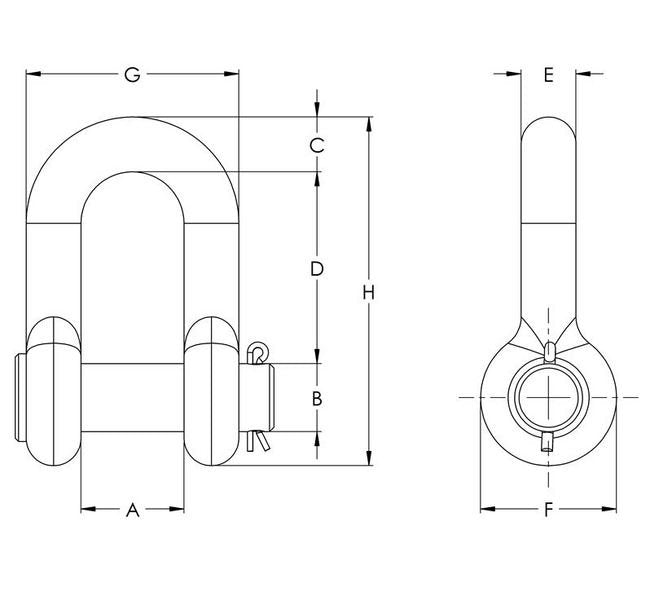

Product Specifications

Specifications A In

2.25

Specifications B In

1.5

Specifications C In

1.5

Specifications D In

4.38

Specifications E In

1.38

Specifications F In

3.31

Specifications G In

Specifications H In

8.28

Specifications M In

6.84

Specifications Nominal Size In

1 3/8

Specifications Weight Lbs

Specifications Wll Tons

13 1/2

CAGE

0T9L4

NAICS

332999

PSC

5340
