1-3/8 Inch (in) Size Ceramic Water Filtration Sphere
1-3/8 Inch (in) Size Ceramic Water Filtration Sphere
SKU:CER-6a2fee
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
1-3/8 Inch (in) Size Ceramic Water Filtration Sphere
$49.99
Quantity: 1
Claim Your Seller Account
1-3/8 Inch (in) Size Ceramic Water Filtration Sphere
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

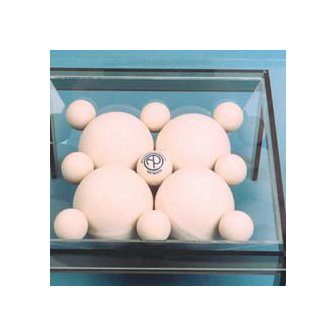

Akron Porcelain & Plastics Company serves the Water Filtration Industry by supplying ceramic spheres for Wheeler filter bottoms. Akron'S water filtration spheres are certified to ANSI/NSF Standard 61 and Akron retains membership in the American Water Works Association (AWWA).The Wheeler Filter Bottom for gravity filters has been recognized for many years as a most efficient and durable filter bottom. The Wheeler Filter Bottom, monolithic type, consists of a reinforced concrete floor slab, or "false" floor, supported on piers about 22 in. above the floor of the filter box. Inverted pyramidal depressions located at 12 in. intervals throughout the Wheeler Bottom, each containing five 3 in. porcelain spheres and nine smaller porcelain spheres. A porcelain thimble having 3/4 in. diameter clear opening permits passage of water through the Bottom.
Product Specifications
Additional Information
OperationWater being filtered flows downward through the sand and gravel, past the openings between the spheres, through the 3/4 in. thimbles, and into the chamber below the filter bottom, then into the effluent pipe and through the Venturi Rate of Flow Controller.During backwashing the direction of flow is reversed. The water flows from the wash water pipe into the chamber at the bottom of the filter, up through the 3/4 in. porcelain thimbles and is diffused by the porcelain spheres before entering the lower gravel layer. Absolutely uniform wash water distribution, for which the Wheeler Bottom is noted, is of utmost importance in maintaining clean, efficient filters, free of mudballs and cakingAkron Porcelain & Plastics Company has an extensive inventory of standard molded ceramic products for use in foundry and electrical applications. These products include extruded tubes and molded pouring cups for the investment casting industry. In addition, we maintain a complete line of strainer cores for use in the investment and sand casting industries as well as Cerama-Nut® Wire Connectors for electrical terminations (UL approved size is available).
Note
Spheres are sold in even carton quantities only.
Physical Properties Compressive Strength
40,000 lb/in²
Physical Properties Flexural Strength
5,000 lb/in²
Physical Properties Resistance To Impact
2.4 in/lb
Physical Properties Specific Gravity
2.4
Physical Properties Tensile Strength
2,500 lb/in²
Physical Properties Water Absorption
1.0 %
Specifications Carton Weight
69 lb
Specifications Pieces Per Carton
600
Specifications Size
1-3/8 in
Specifications Weight Per Piece
53 lb
