1" 316-NM Stainless Steel US Shackle Pin
1" 316-NM Stainless Steel US Shackle Pin
SKU:WIR-8768dd
High-quality 1" 316-NM Stainless Steel US Shackle Pin for chain and anchor shackles, WLL 10,000 lb, precision machined, USA-made.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

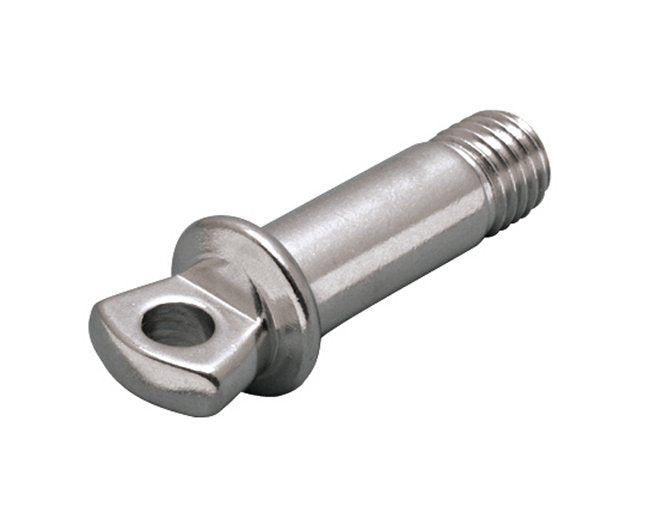

The 1 Inch 316-NM Stainless Steel US Shackle Pin is a precision machined replacement pin designed for chain and anchor shackles. Made in the USA from high-quality 316-NM stainless steel, this pin is load rated and ensures reliable performance. With a Working Load Limit (WLL) of 10,000 lb, this shackle pin provides strength and durability for a variety of wire rope applications, making it a reliable choice for industrial, marine, and government use.
Product Specifications
Note 0
Replacement pin. Compatible with chain shackles (S0115-FS) and anchor shackles (S0116-FS).

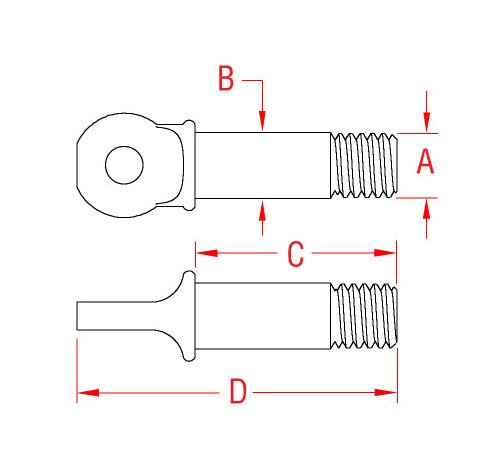

Specifications C
3.70 "
Specifications D
5.35 "
Specifications Dimension A
1-1/8 in.-7
Specifications Dimension B
1.13 "
Specifications Key Features
Load Rated | Made in USA | Precision Machined
Specifications Material
316-NM Stainless Steel
Specifications Size
1 "
Specifications Weight
1.37 lb
Specifications Wll
10,000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
