1" 316 SS BSSH6 Style Basic-Check Threaded In-Line Check Valve with Viton Seal

1" 316 SS BSSH6 Style Basic-Check Threaded In-Line Check Valve with Viton Seal

INL-f1a5af

Versatile 1" 316 SS Basic-Check Threaded In-Line Check Valve with Viton Seal for precise pressure control

$69.99
$69.99
Sale

Initiate Order

1" 316 SS BSSH6 Style Basic-Check Threaded In-Line Check Valve with Viton Seal

1" 316 SS BSSH6 Style Basic-Check Threaded In-Line Check Valve with Viton Seal

$69.99

Quantity: 1

Claim Your Seller Account

1" 316 SS BSSH6 Style Basic-Check Threaded In-Line Check Valve with Viton Seal

1" 316 SS BSSH6 Style Basic-Check Threaded In-Line Check Valve with Viton Seal

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 1" 316 SS BSSH6 Style Basic-Check Threaded In-Line Check Valve with Viton Seal is a versatile solution for a wide range of liquid, steam, and gas applications. With precision-lapped metal-to-metal sealing, this valve ensures tight shutoff and can handle pressure/temperature variations effectively. Featuring stainless steel construction, spring-assisted silent closing, and easy maintenance, this valve is ideal for various pipeline and OEM applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application 0
Autoclaves | Boiler Feed & Discharge | Chemical Lines | Compressor Discharge | Condensate Lines | Cookers | Cooling Towers | Crude & Refined Product Lines | Cryogenics | Digester | Evaporators | Fly Ash System | Generator Inlet & Discharge | Hydraulic Lines | Metering Pumps | Mine Dewatering | Nitrogen Purge | Process Lines | Pump Discharge | Refrigeration | Steam Lines | Vacuum Breaker | Water Lines | Water Treatment
Available Soft Seat Materials Available Soft Seat Materials
Buna-N (-70 to 250ºF) | EPDM (-75 to 300ºF) | TFE®-Viton® (-40 to 400ºF) | Viton® (-40 to 400ºF) | Zelon® (37 to 450ºF)
Codes And Standards Ansi
B1.20.1 | B16.11
Codes And Standards Mss
SP-25
Features 0
1/4" to 2 1/2" Line size450 to 6000 CWPThreaded endsStainless Steel ConstructionSpring-assisted silent closingHorizontal or vertical installationTight shut-off - lapped disc & seatEasy MaintenanceVersatile

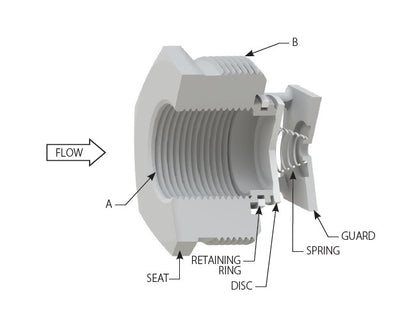

Materials Of Construction Disc
316 SS
Materials Of Construction Guard
CF8M
Materials Of Construction Retaining Ring
316 SS
Materials Of Construction Seat
316 SS/Viton®
Materials Of Construction Spring
316 SS
Options 0
Inconel® 750 Spring Soft seat
Specifications Approx Net Weight Each
1.25 lb | 0.6 kg
Specifications Cold Working Pressure
3000 psig | 207 barg
Specifications Cv
23.1
Specifications Ends
NPT (Threaded)
Specifications Friction Loss Feet Of Pipe
7
Specifications Friction Loss Meter Of Pipe
2.1
Specifications Line Size Inlet Fnpt A
1.00 in
Specifications Outside Thread Mnpt B
2.00 in
Specifications Series
Basic-Check®
Specifications Size
1.00 in | DN 25
Specifications Style
BSSH6
Specifications Temperature Rating
-40 to 400 ºF | -40 to 204.44 ºC
Specifications Valve Cracking Pressure
0.36 psi | 0.025 bar | 10.1 in.water | 257 mm.water | 18.8 mmHg
Specifications Valve Cracking Pressure Tolerance
±10%
Specifications Working Steam Pressure
2130 psig
