1/4" 316-NM Stainless Steel Anchor Shackle with Oversized Screw Pin

1/4" 316-NM Stainless Steel Anchor Shackle with Oversized Screw Pin

SKU:WIR-065a19

High-quality 1/4" 316-NM Stainless Steel Anchor Shackle for reliable lifting and towing. Meets federal standards. WLL 1000 lb.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

1/4" 316-NM Stainless Steel Anchor Shackle with Oversized Screw Pin

1/4" 316-NM Stainless Steel Anchor Shackle with Oversized Screw Pin

$24.99

Quantity: 1

Claim Your Seller Account

1/4" 316-NM Stainless Steel Anchor Shackle with Oversized Screw Pin

1/4" 316-NM Stainless Steel Anchor Shackle with Oversized Screw Pin

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

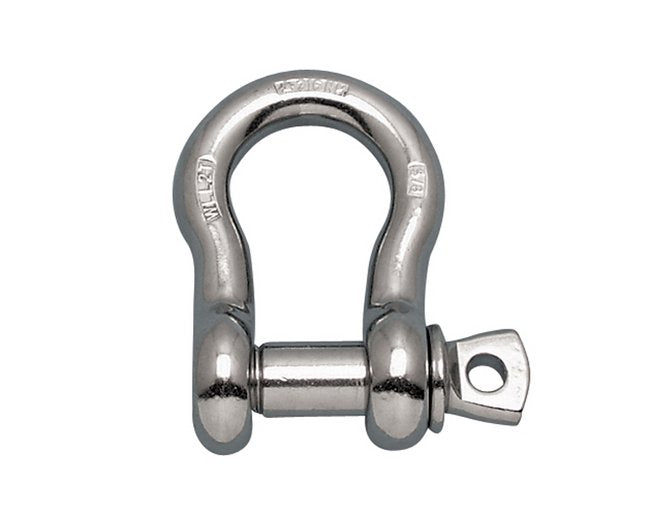

The 1/4 inch Size A 316-NM Stainless Steel Anchor Shackle with Oversized Screw Pin is a robust wire rope hardware essential for lifting or towing applications. Crafted from high-grade 316-NM stainless steel, this shackle is drop-forged and load rated to ensure superior strength and durability. Meeting federal Specification RR-C-271F, type IVA, class 2 standards (except 316 stainless), this anchor shackle is marked to the nearest fractional ton for precise compliance. With a Working Load Limit (WLL) of 1000 lb, this shackle guarantees reliable performance in anchor operations.

Product Specifications

Note 0
I/A/W federal. Specification RR-C-271F, type IVA, class 2, except 316 stainless. Marked to the nearest fractional ton.

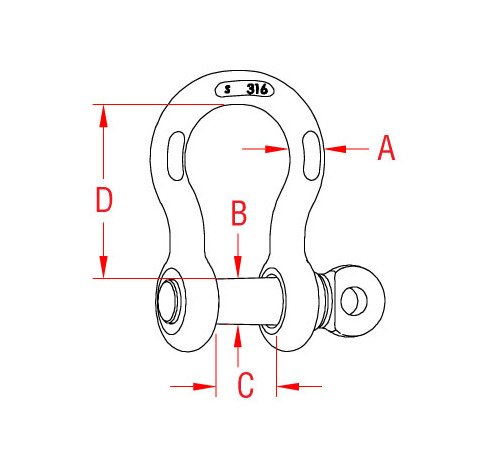

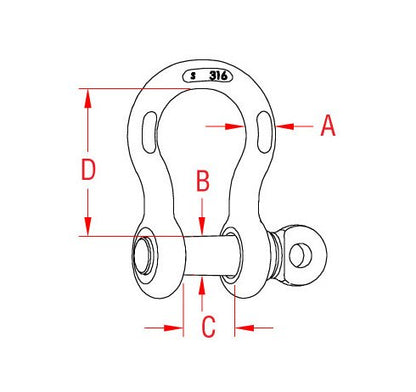

Specifications Applications
Anchor
Specifications C
0.47 "
Specifications D
1.11 "
Specifications Dimension B
0.31 "
Specifications Key Features
Drop Forged | Import | Load Rated
Specifications Material
316-NM Stainless Steel
Specifications Size A
1/4 "
Specifications Weight
0.10 lb
Specifications Wll
1000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
