1/4-32 UNEF-2B Toggle Switch Boot
1/4-32 UNEF-2B Toggle Switch Boot
SKU:SWI-8f0544
ZAGO's 1/4-32 UNEF-2B Toggle Switch Boot offers supreme protection in harsh environments. Resistant to fungi, acids, and more with IP68 rated enclosure protection.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
1/4-32 UNEF-2B Toggle Switch Boot
$15.99
Quantity: 1
Claim Your Seller Account
1/4-32 UNEF-2B Toggle Switch Boot
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

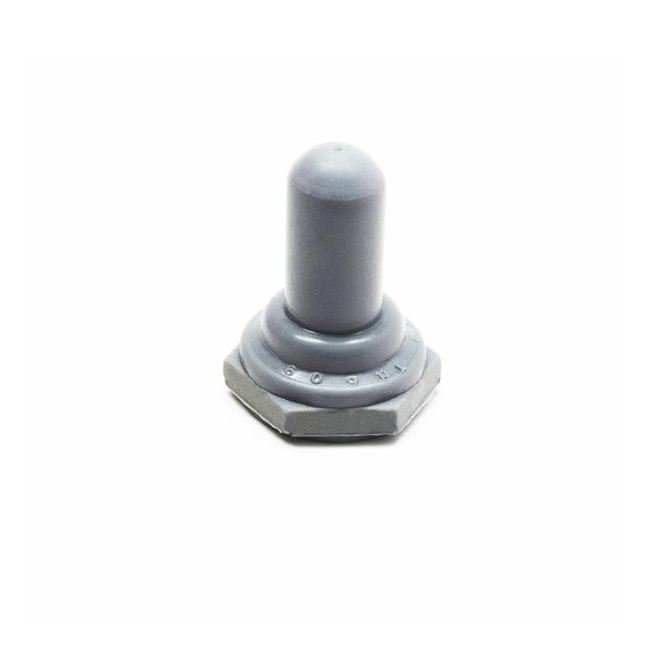

Protect your switches in any environment with the ZAGO 1/4-32 UNEF-2B Toggle Switch Boot. Made of silicone rubber conforming to A-A-59588, this boot resists fungus, acids, ozone, sunlight, and more. With IP68 enclosure protection, corrosion-resistant mounting nut, and a temperature range of -93 to +400 ºF, it's ideal for aerospace, industrial, marine, medical, and military applications.
Product Specifications
Specifications Applications
Aerospace | For Indoor/Outdoor Use to protect against exposure to harsh environments | Industrial Equipment | Marine | Medical Equipment | Military
Specifications Base Width Hex
0.375 in
Specifications Boot Height
0.500 in
Specifications Bushing Thread Size Unified
1/4-32 UNEF-2B
Specifications Color
Black | Gray
Specifications Durometer
50
Specifications Enclosure Protection
IP68 (Under Normal Conditions)
Specifications External Pressure Range
15 psi
Specifications Internal Pressure Range
15 psi
Specifications Material
Silicone Rubber Conforms to A-A-59588
Specifications Maximum Lever Diameter
0.071 in
Specifications Mounting Nut
Corrosion Resistant - Nickel Plated Brass
Specifications Resistant To
Fungus | Most Acids and Lubricating Oils | Ozone | Salt Spray | Sunlight | Weather
Specifications Temperature Range
-93 to +400 ºF
Specifications Thread Type
Unified National Coarse Thread (UNC)
