1/4" Anchor Shackles Screw Pin Hot Dip Galvanized

1/4" Anchor Shackles Screw Pin Hot Dip Galvanized

SKU:WIR-2f2b8f

Top-quality 1/4" Anchor Shackles Screw Pin for lifting and towing applications. Conforms to Federal Specification RR-C-271D, Type IV A, Grade A, Class 2.

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

1/4" Anchor Shackles Screw Pin Hot Dip Galvanized

1/4" Anchor Shackles Screw Pin Hot Dip Galvanized

$12.99

Quantity: 1

Claim Your Seller Account

1/4" Anchor Shackles Screw Pin Hot Dip Galvanized

1/4" Anchor Shackles Screw Pin Hot Dip Galvanized

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

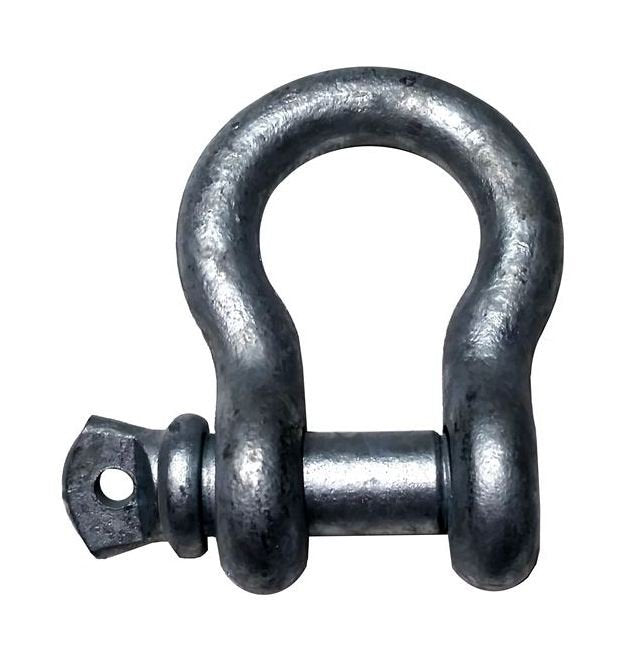

The 1/4" Anchor Shackles Screw Pin Hot Dip Galvanized Drop Forged is a top-quality shackle that conforms to Federal Specification RR-C-271D, Type IV A, Grade A, Class 2. With a high proof load and ultimate load, this shackle provides reliable strength for lifting and towing applications. Precision-engineered with alloy pin, this shackle ensures durability and safety in demanding environments. Trust this hot dip galvanized shackle for your wire rope loops with a working load limit of 1/2 ton.

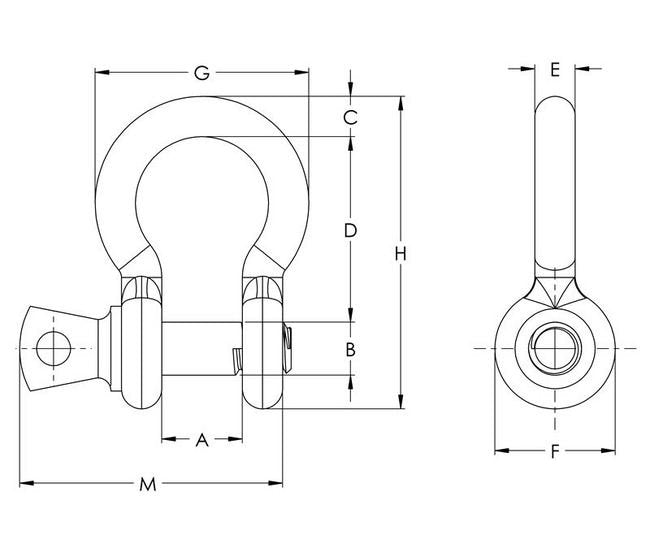

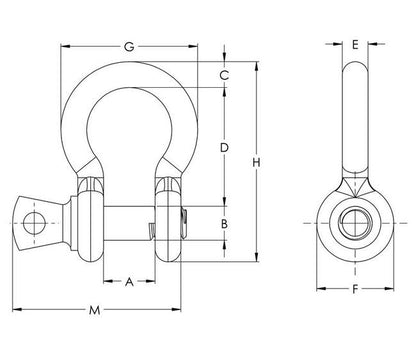

Product Specifications

Specifications A In
0.47
Specifications B In
0.31
Specifications C In
0.25
Specifications D In
1.13
Specifications E In
0.25
Specifications F In
0.61
Specifications G In
1.28
Specifications H In
1.84
Specifications M In
1.38
Specifications Nominal Size In
1/4
Specifications Weight Lbs
0.1
Specifications Wll Tons
1/2
CAGE
0T9L4
NAICS
332999
PSC
5340
