1/4" Female NPT PVC Tuff Guard with PTFE Diaphragm and 0-30 PSI Process Gauge
1/4" Female NPT PVC Tuff Guard with PTFE Diaphragm and 0-30 PSI Process Gauge
SKU:GAU-7be63a
Reliable 1/4" Female NPT PVC Tuff Guard with PTFE Diaphragm & 0-30 PSI Process Gauge for precise pressure transmission.
Regular price
$577.50
Regular price
Sale price
$577.50
Unit price
per
Initiate Order
1/4" Female NPT PVC Tuff Guard with PTFE Diaphragm and 0-30 PSI Process Gauge
$577.50
Quantity: 1
Claim Your Seller Account
1/4" Female NPT PVC Tuff Guard with PTFE Diaphragm and 0-30 PSI Process Gauge
$577.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

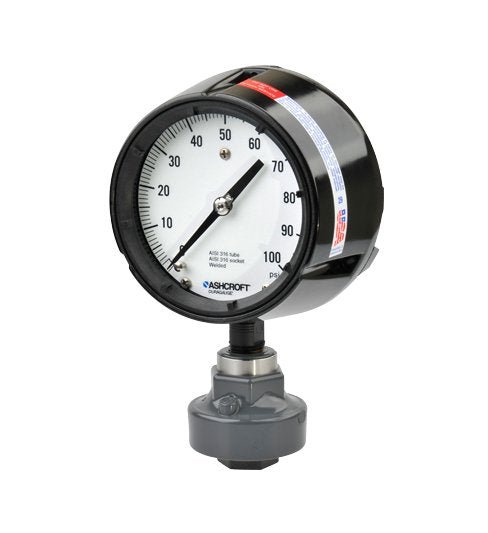

The 1/4" Female NPT Inlet Connection PVC Tuff Guard with PTFE Diaphragm ensures accurate pressure transmission with its convoluted diaphragm design. This assembly features a durable stainless steel reinforced instrument connection, compressive spoke ribs for stress transfer, and ANSI Schedule 120 compliant wall thickness. The 4.5" Ashcroft Duragauge Process Gauge is vacuum assembled, tested, and calibrated for precision. Glycerin-filled and with a low profile to eliminate dead volume, this assembly is ideal for industrial applications requiring reliability and longevity.
Product Specifications
Specifications Inlet Connection
1/4" Female NPT
Specifications List Price
577.5 USD
Specifications Materials
PVC, PTFE Diaphragm
Specifications Pressure Range
0-30 PSI test
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
