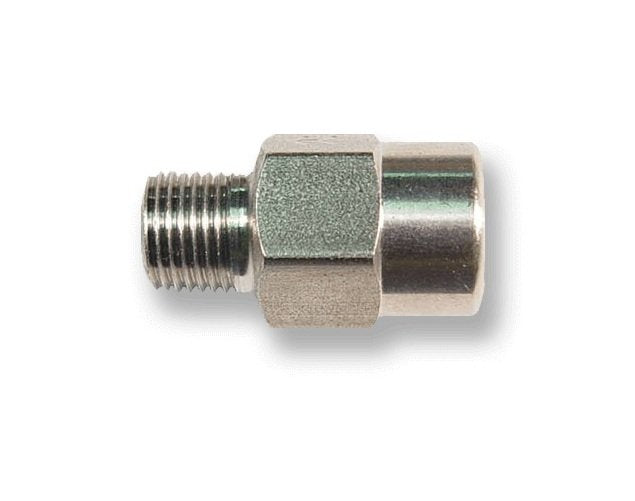

1/4" FNPT Brass Piston Check Valve - PSCV Series
1/4" FNPT Brass Piston Check Valve - PSCV Series
SKU:PIS-9e1205
Reliable 1/4" FNPT Brass Piston Check Valve for tight seal with 1 psi crack pressure & 500 psi max pressure. Contact for custom options.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
1/4" FNPT Brass Piston Check Valve - PSCV Series
$29.99
Quantity: 1
Claim Your Seller Account
1/4" FNPT Brass Piston Check Valve - PSCV Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PSCV Series 1/4" Female National Pipe Thread Brass Piston Check Valve with Buna Seal ensures a positive bubble-tight seal, meeting institutional procurement standards with a cracking pressure of 1 psi and maximum pressure of 500 psi. With a maximum working temperature of 250°F, the standard unit features Brass construction with a 302 Stainless Steel spring and Steel retainer. Optional springs available, along with seals in Buna, EPDM, or FKM materials. Contact our sales department for custom options.
Product Specifications
Note Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Check Valve Type
Piston
Technical Specs Crack Pressure
1 psi
Technical Specs Material
Brass
Technical Specs Maximum Pressure
500 psi
Technical Specs Maximum Working Temperature
250 ºF
Technical Specs Series
PSCV
Technical Specs Thread Size
1/4 in
Technical Specs Thread Type
Female National Pipe Thread (FNPT)
