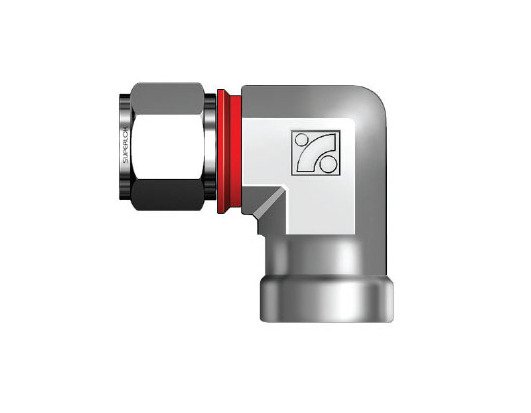

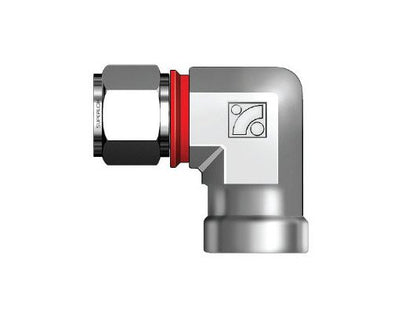

1/4 in Tube Female Elbow with NPT Thread
1/4 in Tube Female Elbow with NPT Thread
SKU:SFE-ef7d61
Reliable 1/4 in Tube Female Elbow with NPT Thread for secure fractional tube connections. Boosts safety, productivity, and cost-efficiency.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
1/4 in Tube Female Elbow with NPT Thread
$24.99
Quantity: 1
Claim Your Seller Account
1/4 in Tube Female Elbow with NPT Thread
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SFEI Series 1/4 in Tube Female Elbow with NPT Thread is designed to connect fractional tubes securely to male NPT threads. Made from high-quality materials like Stainless Steel and Carbon Steel, this female elbow ensures a reliable and leak-free connection. Its patented i-Fitting® design includes a built-in check ring for precise compression, enhancing safety in high-pressure environments and eliminating over-tightening issues. Ideal for valve connections, this female elbow is a game-changer in the industry, boosting productivity and reducing costs.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

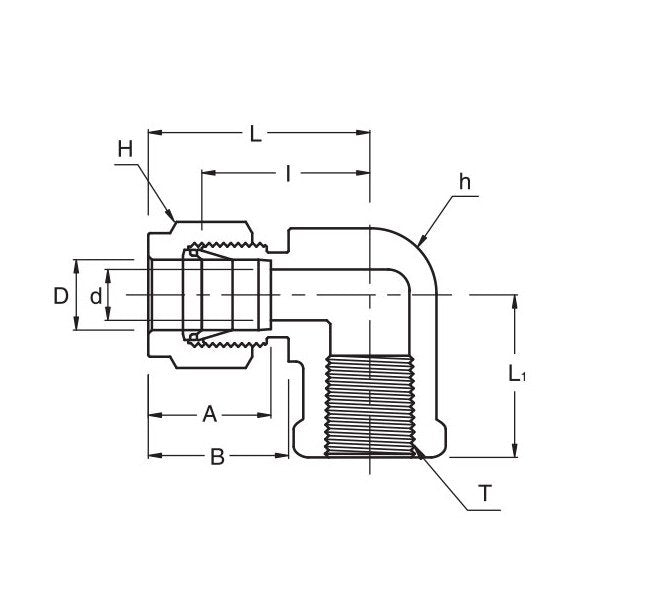

Technical Specs Connection Type
Female
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
22.35 mm
Technical Specs Dimension L
29.71 mm
Technical Specs Dimension L1
22.35 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
