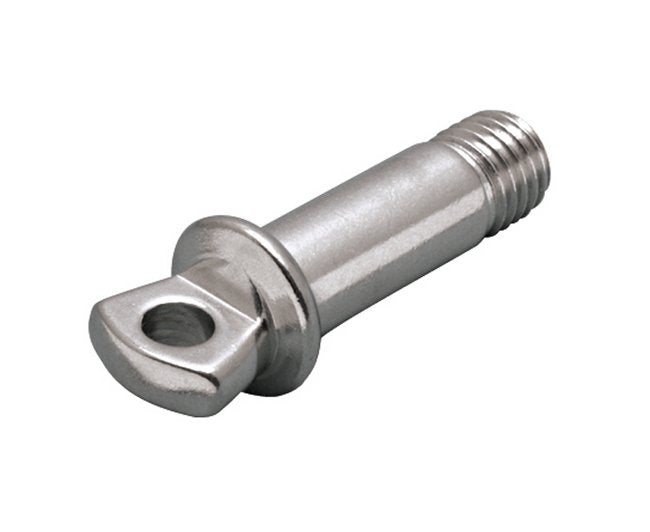

1/4 Inch 316-NM Stainless Steel US Shackle Pin

1/4 Inch 316-NM Stainless Steel US Shackle Pin

SKU:WIR-bdf3a6

High-quality 1/4 Inch 316-NM Stainless Steel US Shackle Pin, load-rated at 1000 lbs, compatible with chain and anchor shackles.

Regular price $9.99
Regular price Sale price $9.99
Sale

Initiate Order

1/4 Inch 316-NM Stainless Steel US Shackle Pin

1/4 Inch 316-NM Stainless Steel US Shackle Pin

$9.99

Quantity: 1

Claim Your Seller Account

1/4 Inch 316-NM Stainless Steel US Shackle Pin

1/4 Inch 316-NM Stainless Steel US Shackle Pin

$9.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

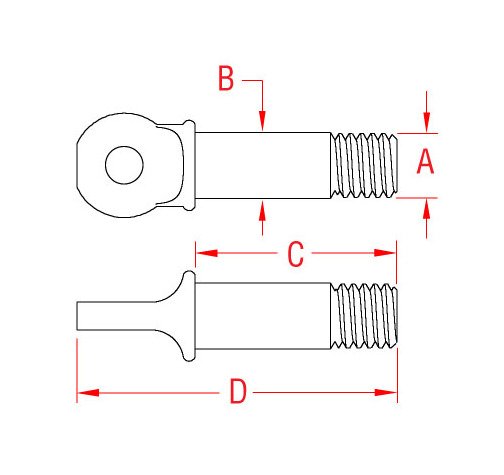

The 1/4 Inch 316-NM Stainless Steel US Shackle Pin is a precision machined, load-rated replacement pin, designed for use with chain shackles (S0115-FS) and anchor shackles (S0116-FS). Made in the USA from high-quality 316-NM stainless steel, this shackle pin offers a reliable working load limit of 1000 lbs. Its dimensions, including A: 5/16 in.-18, B: 0.31 in., C: 0.98 in., and D: 1.55 in., ensure compatibility and secure connections. Trust this durable and versatile shackle pin for your wire rope hardware needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

Product Specifications

Note 0
Replacement pin. Compatible with chain shackles (S0115-FS) and anchor shackles (S0116-FS).
Specifications C
0.98 "
Specifications D
1.55 "
Specifications Dimension A
5/16 in.-18
Specifications Dimension B
0.31 "
Specifications Key Features
Load Rated | Made in USA | Precision Machined
Specifications Material
316-NM Stainless Steel
Specifications Size
1/4 "
Specifications Weight
0.03 lb
Specifications Wll
1000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
