1/4 inch Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged

1/4 inch Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged

SKU:WIR-6da26b

1/4 inch Chain Shackles Screw Pin for reliable lifting and towing. Conforms to Federal Specification RR-C-271D standards.

Regular price $9.99
Regular price Sale price $9.99
Sale

Initiate Order

1/4 inch Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged

1/4 inch Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged

$9.99

Quantity: 1

Claim Your Seller Account

1/4 inch Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged

1/4 inch Chain Shackles Screw Pin Hot Dip Galvanized Drop Forged

$9.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

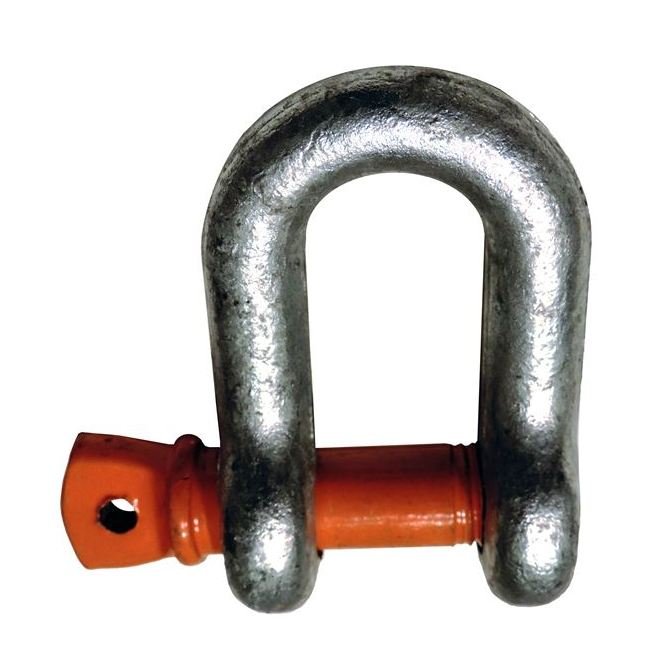

The 1/4 inch Chain Shackles Screw Pin is a reliable and durable hardware tool designed for lifting or towing applications. This shackle conforms to Federal Specification RR-C-271D, Type IVB, Grade A, Class 2 standards, ensuring high quality and performance. With a working load limit of 1/2 ton and an ultimate load 6 times higher, this shackle offers superior strength and safety. The quenched and tempered alloy pin, along with a proof load of 2.2 times the working load limit, guarantees secure fastening under heavy loads. Trust this hot dip galvanized shackle for robust and resilient wire rope connections.

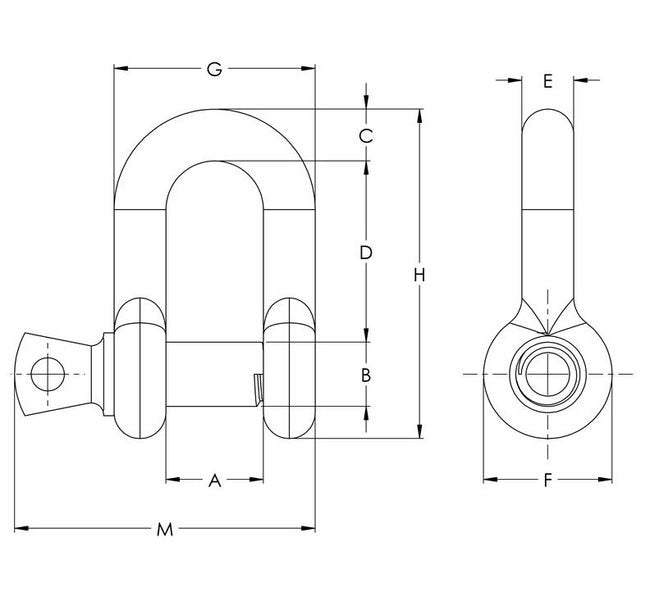

Product Specifications

Specifications A In
0.47
Specifications B In
0.31
Specifications C In
0.25
Specifications D In
0.88
Specifications E In
0.25
Specifications F In
0.61
Specifications G In
0.97
Specifications H In
1.59
Specifications M In
1.38
Specifications Nominal Size In
1/4
Specifications Weight Lbs
0.11
Specifications Wll Tons
1/2
CAGE
0T9L4
NAICS
332999
PSC
5340
