1/4 Inch Clearance Commercial Door Hinge
1/4 Inch Clearance Commercial Door Hinge
SKU:COM-eff016
Enhance commercial door security with precision 1/4in clearance hinge.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
1/4 Inch Clearance Commercial Door Hinge
$29.99
Quantity: 1
Claim Your Seller Account
1/4 Inch Clearance Commercial Door Hinge
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

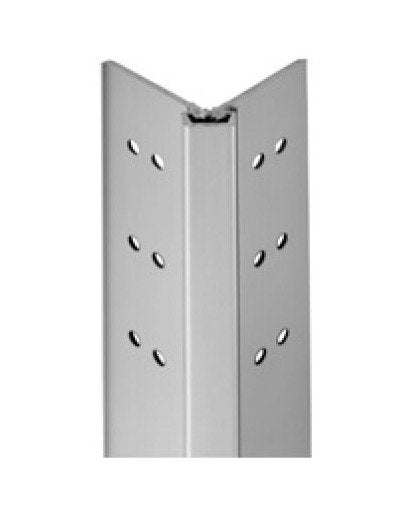

The 1/4 Inch Clearance Commercial Door Hinge is a top-of-the-line hardware solution for commercial door and storefront applications. Crafted from durable 6063 T6 Aluminum alloy, this hinge features a non-handed design suitable for various door configurations. With a standard duty rating and 16 thrust type self-lubricating concealed bearings per hinge, it ensures smooth operation and high security. Each hinge leaf is flush mount with an alignment stop, offering precision and stability. Ideal for projects requiring a clearance of 1/4 inch between the door and frame, this hinge guarantees reliable performance and long-lasting durability. Upgrade your commercial space with this quality hinge that combines innovation, security, and functionality.
Product Specifications
Additional Information Additional Information
Through bolt and machine screws fixingTemplate hole patternsMinimum 5 Hinges Required or Combination
Features Features
Flush mountEach hinge leaf has an alignment stop

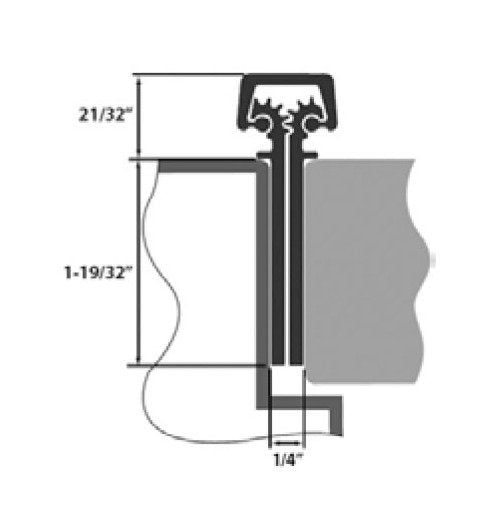

Specifications Clearance Between Door And Frame
1/4 in
Specifications Length
83 in
Specifications Maximum Weight Capacity
200 lb
Specifications Type
Full Mortise
