1/4 inch Mini-Cobra® Duct Rods for Conduit Installation
1/4 inch Mini-Cobra® Duct Rods for Conduit Installation
SKU:CON-6f55be
Enhance rodding operations with Mini-Cobra® 1/4 inch duct rods for efficient cable installation in smaller duct sizes.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
1/4 inch Mini-Cobra® Duct Rods for Conduit Installation
$139.99
Quantity: 1
Claim Your Seller Account
1/4 inch Mini-Cobra® Duct Rods for Conduit Installation
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

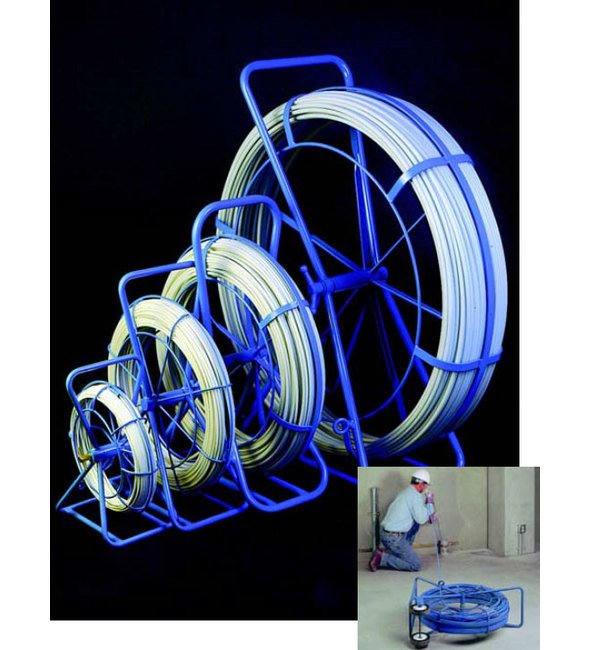

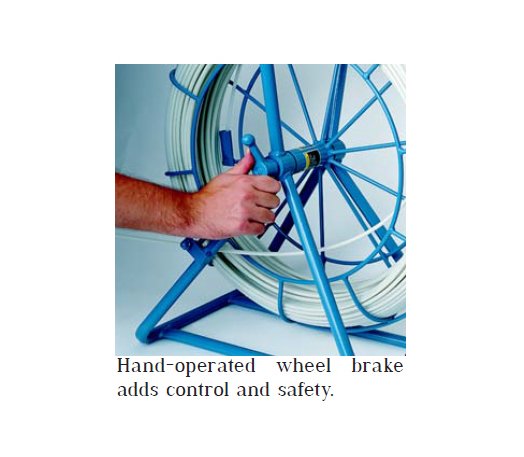

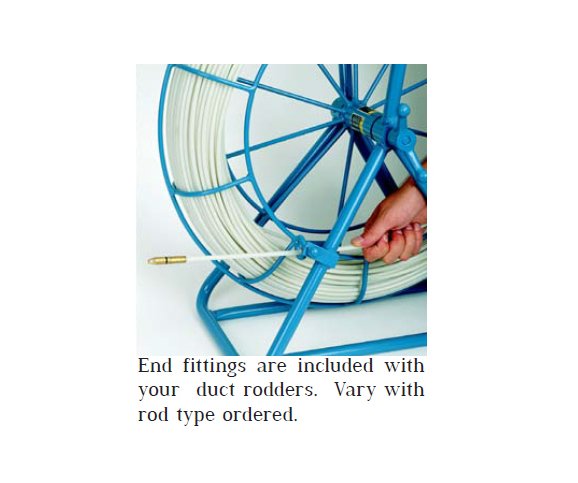

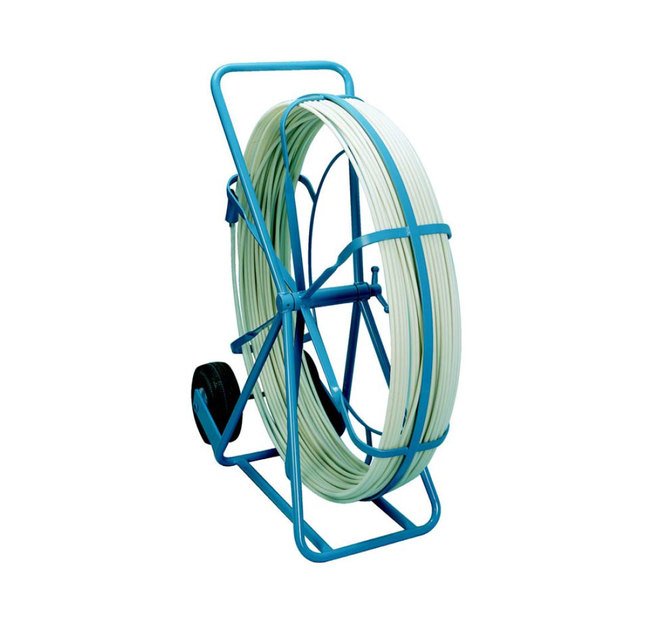

Enhance your rodding operations with our 1/4 inch Mini-Cobra® duct rods designed for efficiency and reliability. These lightweight rods feature a hand-operated wheel brake, sturdy construction, and can be used both upright and on their side. Equipped with end fittings and tapered heads, these rods offer excellent flexural strength, compressive strength, and fatigue resistance. The Mini-Cobra® rods are ideal for smaller duct sizes and shorter runs, coming in 50' to 600' lengths wound in 16" and 24" cages. With a pull strength of 350 lb (1557 N) and suitable for multiple conduit sizes, these rods provide a durable solution for cable installation.
Product Specifications
SPECIFICATIONS CAGE Size In
24
Specifications Conduit Size In
1 | 1-1/4 | 1-1/2 | 2 | 2-1/2
Specifications Conduit Size Mm
25 | 32 | 38 | 51 | 64
Specifications Core Od In
0.187
Specifications Core Od Mm
4.8
Specifications End Fitting Size
5/16"-18
Specifications Length Ft
250
Specifications Min Bending Coating Od In
250
Specifications Min Bending Coating Od Mm
6.3
Specifications Pull Strength Lb
350
Specifications Pull Strength N
1557
Specifications Radius In
5
Specifications Radius Mm
127
Specifications Replacement Rod No
08073725
