1/4 Inch MNPT High Pressure Cap
1/4 Inch MNPT High Pressure Cap
SKU:HIG-f4ac34
Secure, durable 1/4 Inch MNPT High Pressure Cap for industrial applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
1/4 Inch MNPT High Pressure Cap
$12.99
Quantity: 1
Claim Your Seller Account
1/4 Inch MNPT High Pressure Cap
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1/4 Inch MNPT High Pressure Cap is specially designed to fit 146-9 and 147 Series Plugs, ensuring a secure seal in high-pressure applications. Manufactured by Petersen®, this cap features precise threading to accommodate 1/4 Inch MNPT fittings. With a durable build and a weight of 1 lb for stability, this cap guarantees reliable performance and long-lasting durability, making it an ideal choice for commercial, industrial, and government use.

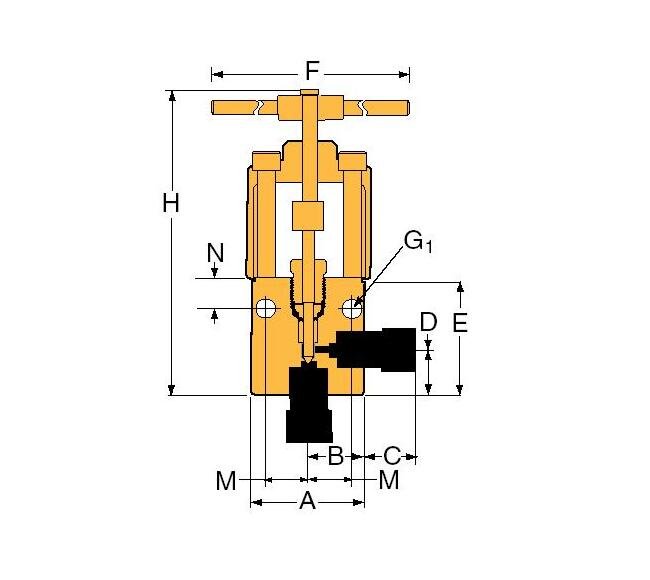

Product Specifications
Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 34.93 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
SF750CX
Specifications C Length
0.63 in | 15.88 mm
Specifications D Height
1.75 in | 44.45 mm
Specifications E Height
3.75 in | 95.25 mm
Specifications F Length
8.00 in | 203.20 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
9.63 in | 244.48 mm
Specifications M Length
1.13 in | 28.58 mm
Specifications N Height
0.88 in | 22.23 mm
Specifications Orifice Diameter
0.438 in | 11.13 mm
Specifications Outside Diameter Tube
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
2.41
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.00 in | 25.4 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
