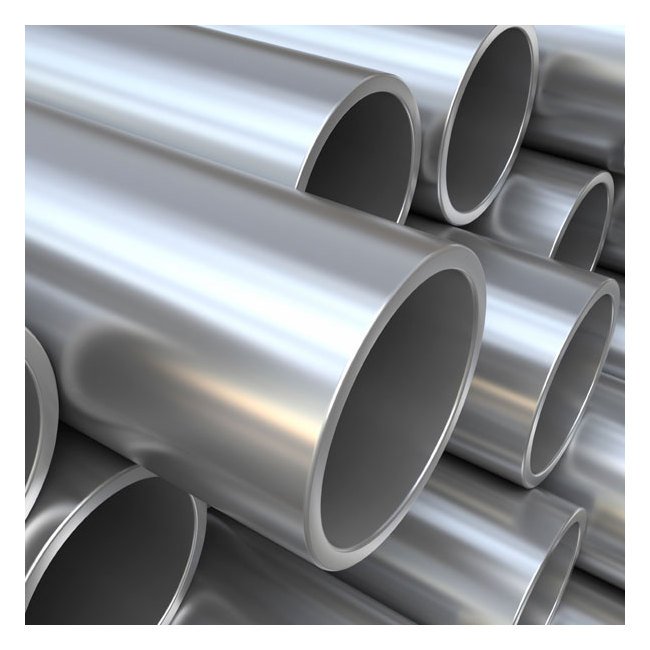

1/4 Inch Sch. 80 Alloy 20 Pipe

Name: 1/4 Inch Sch. 80 Alloy 20 Pipe
Brand: Continental Steel & Tube Co.
SKU: NIC-e5209e
Price: 99.99 USD
Availability: OutOfStock

SKU:NIC-e5209e

High-performance 1/4 Inch Sch. 80 Alloy 20 Pipe for superior corrosion resistance and mechanical properties. Ideal for industrial applications.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1/4 Inch Sch. 80 Alloy 20 Pipe is a superior nickel-iron-chromium super alloy designed for demanding environments like pharmaceutical, chemical, and food processing industries. With exceptional resistance to sulfuric, phosphoric, and nitric acids, this alloy offers unparalleled corrosion, crevice, and pitting resistance. Manufactured to meet ASTM, ASME, ISO, and DIN standards, this seamless or welded pipe boasts a composition of 31-44% Fe, 32.5-35% Ni, 19-21% Cr, 3-4% Cu, and 2-3% Mo, ensuring elevated mechanical properties and ease of fabrication. Ideal for applications requiring corrosion-resistant piping, the Alloy 20 Pipe is a reliable choice for industrial applications.

Product Specifications

Additional Information Additional Information

Its combination of 31-44% Fe, 32.5-35% Ni, 19-21% Cr, 3-4% Cu, and 2-3% Mo yield elevated mechanical properties that allow for easy fabrication. It can also be used in TIG, MIG, or SAW welding applications or easily formed through hot and cold working. Alloy 20, Carpenter 20, and IncoloyÂ® 20 piping systems are manufactured worldwide for process piping, mixing tanks, heat exchangers, pickling equipment, pumps, or any facility that requires corrosion resistant piping for synthetic material transport.When compared to other steels in this category, some debate exists as to whether or not Alloy 20 is classified as a nickel or stainless steel alloy due to its higher degree of nickel content. Regardless of this dispute, our Alloy 20 piping line has proven its performance by serving an array of industrial applications. It also meets or exceeds over 44 different industry standards including ASTM, ASME, ISO, and DIN, making it a versatile choice for specialized piping in a wide variety of industries.We are proud to stock and offer Nickel Alloy 20, Carpenter 20, and IncoloyÂ® 20 pipe in various shapes and sizes. Alloy 20 is also available for other mechanical or structural applications. We sell it in the form of flat bar, forging stock, hexagon, plate, sheet, strip, tube, round bar, and wire shapes.

Nickel Alloy Compositions Alloy

Alloy 20

Nickel Alloy Compositions Astm Specification

Nickel Alloy Compositions Density

8.08 g/cmÂ³ | 0.292 lbs/inÂ³

Specifications Material

Alloy

Specifications Nominal Diameter Metric

8 mm

Specifications Nominal Diameter Standard

1/4 inches

Specifications Od

0.54 inches | 13.716 mm

Specifications Shapeform

Pipe

Specifications Thickness

Sch. 80

1/4 Inch Sch. 80 Alloy 20 Pipe
