1/4 Inch SQC Series SUPERLOK Quick Connector Fitting
1/4 Inch SQC Series SUPERLOK Quick Connector Fitting
SKU:SQC-ad0711
Efficient 1/4 Inch SUPERLOK Quick Connector Fitting for reliable fluid and gas line connections. Durable construction with automatic shut-off feature.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
1/4 Inch SQC Series SUPERLOK Quick Connector Fitting
$39.99
Quantity: 1
Claim Your Seller Account
1/4 Inch SQC Series SUPERLOK Quick Connector Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1/4 Inch SQC Series SUPERLOK Quick Connector Fitting is a high-quality instrumentation fitting designed for ease of use and reliability. With a single shutoff plug type and a maximum flow rate of 15 L/min, this fitting offers efficient connectivity for fluid and gas lines. Made of 316 stainless steel or brass, it ensures durability and resistance to corrosion. The simple push-pull action facilitates quick line connections without the need for tools. Whether valved or unvalved, this fitting minimizes liquid or gas loss with automatic shut-off when disconnected.
Product Specifications
Features Features
Simple push-pull action to connect and disconnect lines-no tools required.Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Coupled Pressure Rating At 400 Degree Fahrenheit
250 psig | 17.2 bar
Technical Specs Coupled Pressure Rating At 70 Degree Fahrenheit
3000 psig | 206 bar

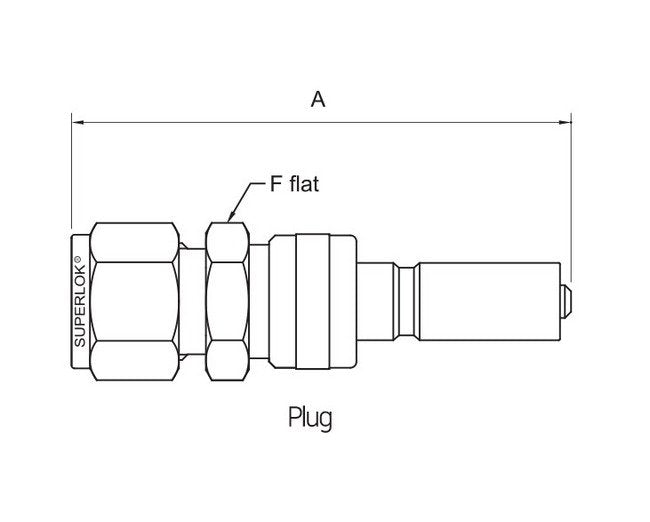

Technical Specs Dimension A
61.5 mm
Technical Specs Dimension F
15.9 mm
Technical Specs End Connections
1/4 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
0.4
Technical Specs Insertion Depth
1.09 in | 27.7 mm
Technical Specs Maximum Flow Rate Water At 70 Degree Fahrenheit
15 L/min | 4 gpm
Technical Specs Plug Type
Single Shutoff Plug
Technical Specs Type
Plug
