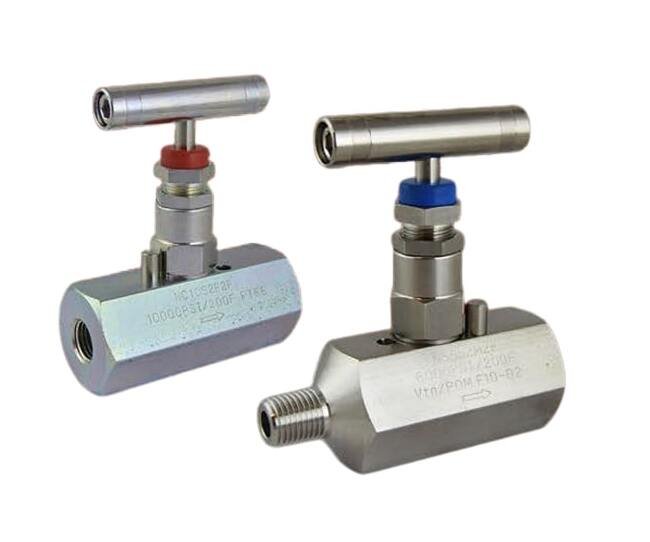

1/4 Inch Standard Pattern Needle Valve - Female x Female NPT Thread, 6000 psi
1/4 Inch Standard Pattern Needle Valve - Female x Female NPT Thread, 6000 psi
SKU:STA-0a7eec
Reliable 1/4 Inch Standard Pattern Needle Valve with 6000 psi, ASME B1.20.1 Compliant
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
1/4 Inch Standard Pattern Needle Valve - Female x Female NPT Thread, 6000 psi
$45.99
Quantity: 1
Claim Your Seller Account
1/4 Inch Standard Pattern Needle Valve - Female x Female NPT Thread, 6000 psi
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

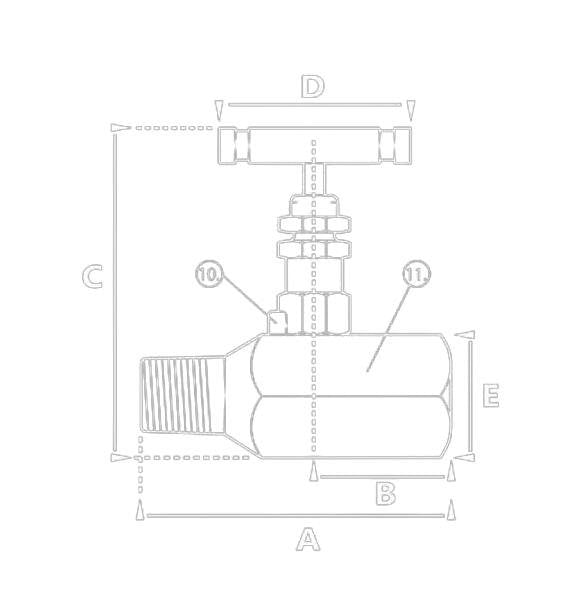

The 1/4 Inch Standard Pattern Needle Valve features a Female x Female NPT Thread design with a working pressure of 6000 psi, ensuring reliable performance in demanding applications. Constructed from carbon with a PolyOxyMethylene (POM) Soft Seat, this valve adheres to American Society of Mechanical Engineers (ASME) B1.20.1 and National Association of Corrosion Engineers (NACE) standards, offering durability and efficiency. With precise dimensions (A: 3.23 in, B: 1.62 in, C: 3.54 in, D: 2.24 in, E: 1.26 in) and threads conforming to ASME specifications, this needle valve is a dependable choice for industrial settings.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1
Technical Specs Dimension A
3.23 in
Technical Specs Dimension B
1.62 in
Technical Specs Dimension C
3.54 in
Technical Specs Dimension D
2.24 in
Technical Specs Dimension E
1.26 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant
Technical Specs Material
Carbon
Technical Specs Seat Material
PolyOxyMethylene (POM) Soft Seat
Technical Specs Thread Size
1/4 in
Technical Specs Thread Type
Female x Female National Pipe Thread (NPT)
Technical Specs Working Pressure
6000 psi
