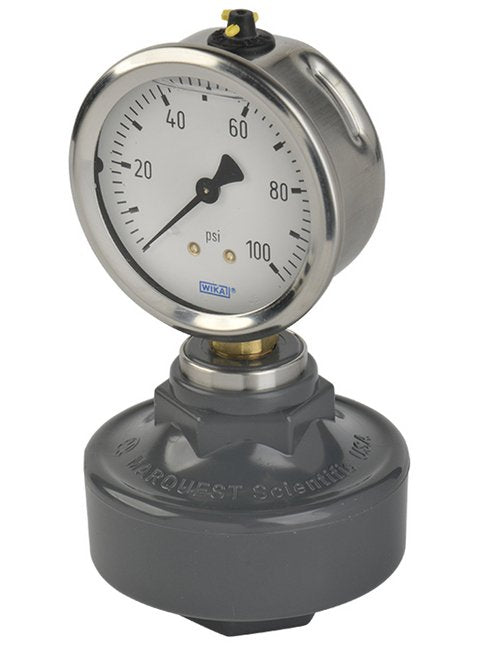

1/4" Inlet Female NPT Connection Gauge Isolator with PVC Body and PTFE Diaphragm
1/4" Inlet Female NPT Connection Gauge Isolator with PVC Body and PTFE Diaphragm
SKU:GAU-dc5006
Isolate your pressure instruments with precision using our durable PVC & PTFE Gauge Isolator.
Regular price
$196.95
Regular price
Sale price
$196.95
Unit price
per
Initiate Order
1/4" Inlet Female NPT Connection Gauge Isolator with PVC Body and PTFE Diaphragm
$196.95
Quantity: 1
Claim Your Seller Account
1/4" Inlet Female NPT Connection Gauge Isolator with PVC Body and PTFE Diaphragm
$196.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1/4" Inlet Female NPT Connection Gauge Isolator features a PVC body and a PTFE diaphragm, providing total isolation for pressure sensing instruments. With an impermeable membrane and stainless steel reinforced connections, this isolator ensures accurate pressure transmission. Its compressive spoke ribs enhance stress transfer, while the low profile design eliminates dead volume. Designed with a fill/bleed port provision and integral wrench provisions, this isolator offers ease of maintenance. Suitable for various pressure ranges, it meets stringent industry standards for both durability and performance.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.

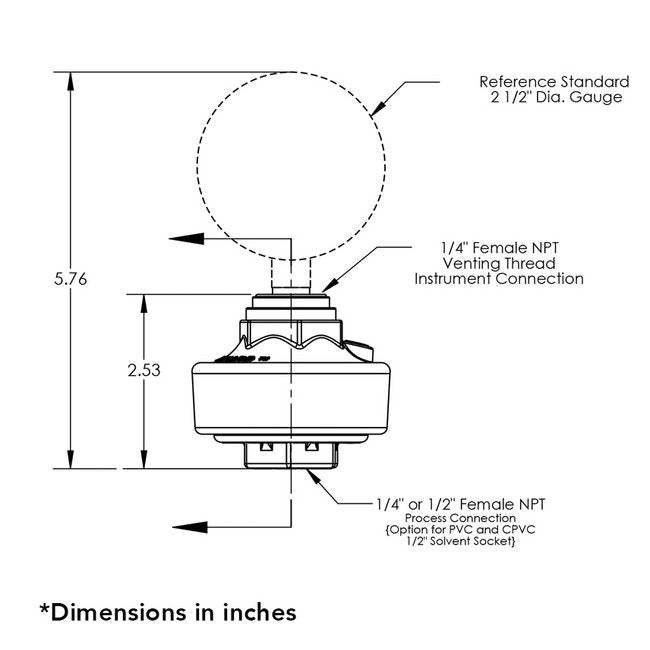

Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-100 PSI, SS, Brass
Specifications List Price
196.95 USD
Specifications Materials
PVC, PTFE Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
