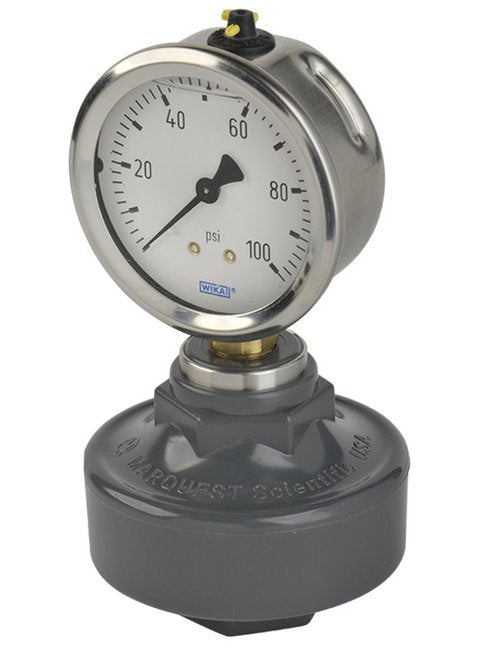

1/4" PVC Gauge Isolator with EPDM Diaphragm and Wika 2.5" Stainless Brass Gauge
1/4" PVC Gauge Isolator with EPDM Diaphragm and Wika 2.5" Stainless Brass Gauge
SKU:GAU-61e5f6
Ensure precision pressure isolation with our 1/4" PVC Gauge Isolator kit for accurate transmission and maintenance ease.
Regular price
$200.95
Regular price
Sale price
$200.95
Unit price
per
Initiate Order
1/4" PVC Gauge Isolator with EPDM Diaphragm and Wika 2.5" Stainless Brass Gauge
$200.95
Quantity: 1
Claim Your Seller Account
1/4" PVC Gauge Isolator with EPDM Diaphragm and Wika 2.5" Stainless Brass Gauge
$200.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1/4" PVC Gauge Isolator with EPDM Diaphragm and Wika Stainless Brass Gauge ensures precise pressure transmission with total isolation from system media. Featuring an impermeable diaphragm design, stainless steel reinforced instrument connections, and a low profile design to eliminate dead volume, this isolator guarantees accurate pressure containment. With a replaceable diaphragm and integral wrench provisions for field service and maintenance, this product meets ANSI Schedule 120 wall thickness standards and is versatile for various instrument sizes and pressure ranges.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0

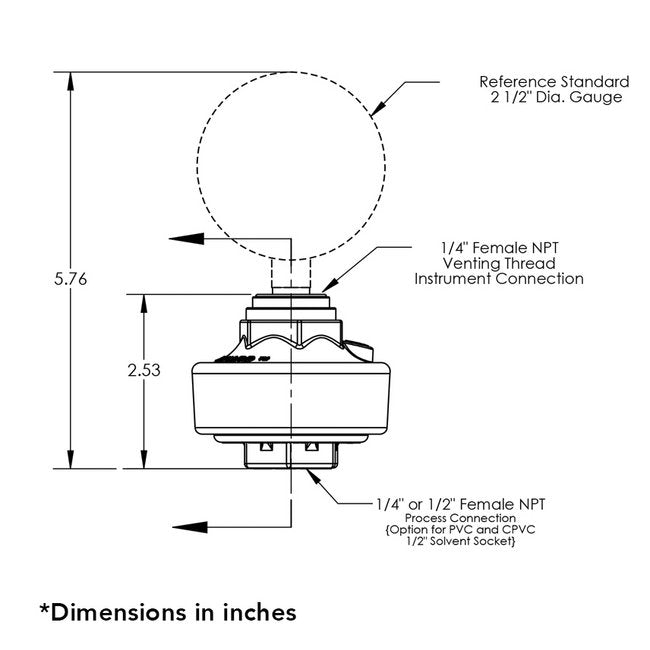

The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-60 PSI, SS, Brass
Specifications List Price
200.95 USD
Specifications Materials
PVC, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
