1/4" PVC Tuff Guard Gauge Isolator w/ EPDM Diaphragm
1/4" PVC Tuff Guard Gauge Isolator w/ EPDM Diaphragm
SKU:GAU-0e9b26
Ensure accurate pressure transmission with this PVC Tuff Guard Gauge Isolator w/ EPDM Diaphragm. Vacuum assembled, tested & calibrated for 0-200 PSI range.
Regular price
$578.50
Regular price
Sale price
$578.50
Unit price
per
Initiate Order
1/4" PVC Tuff Guard Gauge Isolator w/ EPDM Diaphragm
$578.50
Quantity: 1
Claim Your Seller Account
1/4" PVC Tuff Guard Gauge Isolator w/ EPDM Diaphragm
$578.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

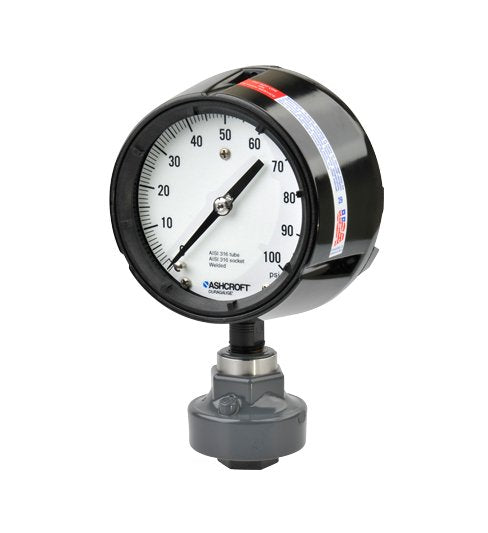

The 1/4" PVC Tuff Guard Gauge Isolator features an EPDM diaphragm convoluted for precise pressure transmission, reinforced with stainless steel. It boasts a sturdy construction with compressive spoke ribs, meeting ANSI Schedule 120 wall thickness standards. This vacuum-assembled assembly includes a 4.5" Ashcroft Duragauge Process Gauge, glycerin-filled, calibrated, and tested for accuracy and durability. With a pressure range of 0-200 PSI, this isolator guarantees reliability, durability, and ease of maintenance, making it ideal for both consumer and institutional applications.
Product Specifications
Specifications Inlet Connection
1/4" Female NPT
Specifications List Price
578.5 USD
Specifications Materials
PVC, EPDM Diaphragm
Specifications Pressure Range
0-200 PSI
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
