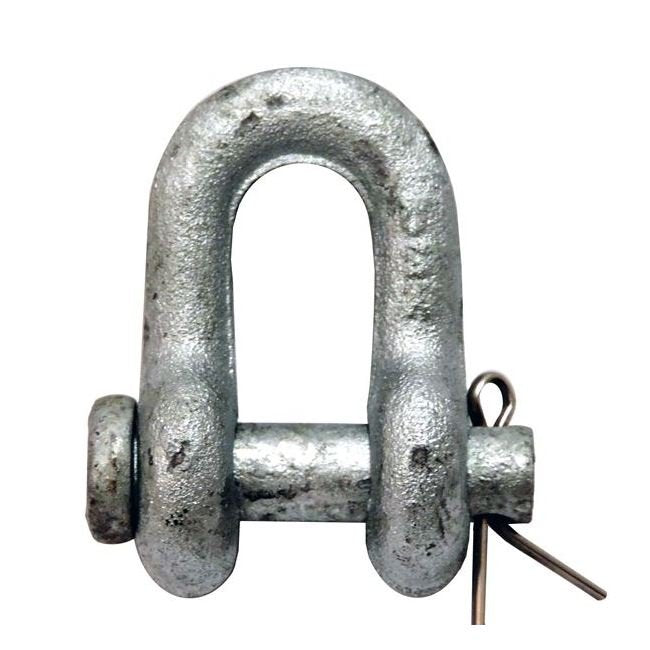

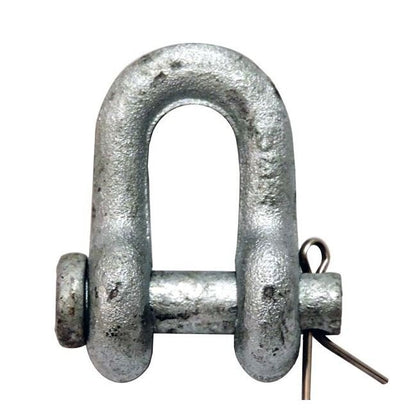

1/4" Round Pin Chain Shackles Hot Dip Galvanized Drop Forged
1/4" Round Pin Chain Shackles Hot Dip Galvanized Drop Forged
SKU:WIR-be20e5
Meet Federal Spec RR-C-271D standards with these durable 1/4" Round Pin Chain Shackles for reliable lifting and towing.
Regular price
$8.99
Regular price
Sale price
$8.99
Unit price
per
Initiate Order
1/4" Round Pin Chain Shackles Hot Dip Galvanized Drop Forged
$8.99
Quantity: 1
Claim Your Seller Account
1/4" Round Pin Chain Shackles Hot Dip Galvanized Drop Forged
$8.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1/4" Round Pin Chain Shackles Hot Dip Galvanized Drop Forged meet Federal Spec RR-C-271D, Type IVB, Grade A, Class 1 standards. With an ultimate load of 6 times the working load limit and a quenched, tempered alloy pin, these shackles offer a reliable lifting solution. Designed for wire rope loops, these shackles boast a proof load of 2.2 times the working load limit, ensuring safety and durability in lifting and towing applications.

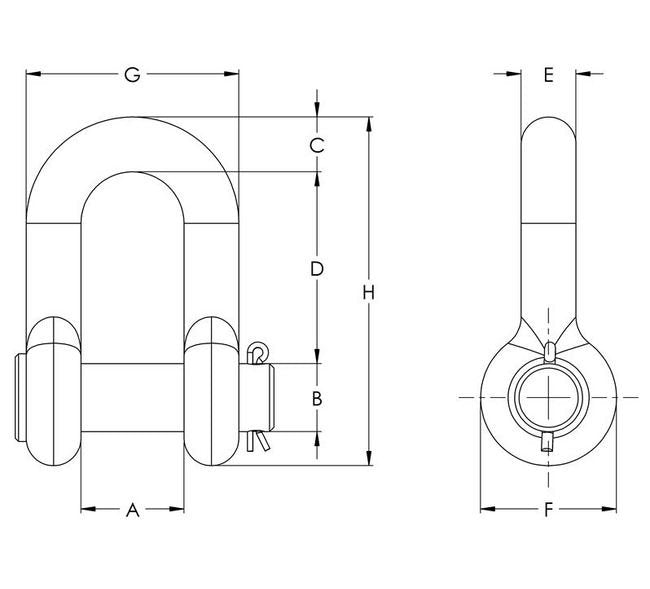

Product Specifications
Specifications A In
0.47
Specifications B In
0.31
Specifications C In
0.25
Specifications D In
0.88
Specifications E In
0.25
Specifications F In
0.61
Specifications G In
0.97
Specifications H In
1.59
Specifications M In
1.38
Specifications Nominal Size In
1/4
Specifications Weight Lbs
0.11
Specifications Wll Tons
1/2
CAGE
0T9L4
NAICS
332999
PSC
5340
