1.41A 4.2V Ultra-Thin Flexible Heater by Pelonis Technologies
1.41A 4.2V Ultra-Thin Flexible Heater by Pelonis Technologies
SKU:ULT-faf981
Efficient 1.41A, 4.2V Ultra-Thin Flexible Heater w/ 0.12 W/cm² power density by Pelonis Tech. CE, CRU®US, RoHS compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
1.41A 4.2V Ultra-Thin Flexible Heater by Pelonis Technologies
$49.99
Quantity: 1
Claim Your Seller Account
1.41A 4.2V Ultra-Thin Flexible Heater by Pelonis Technologies
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

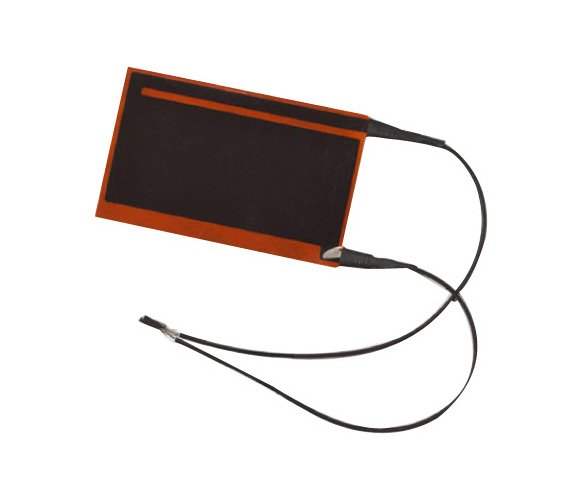

Experience efficient heating with the 1.41A current and 4.2V voltage Ultra-Thin Flexible Heater from Pelonis Technologies. Constructed with high-quality Copper-Nickel alloy and etched foil, this rectangular heater delivers a power density of 0.12 W/cm². With a resistance of 2.97 ohms and CE, CRU®US, RoHS compliant certifications, it ensures safe and reliable operation in diverse environments.
Product Specifications
Note Note
If the heater requires a higher heat-up rate or higher power density (>0.8W/cm2), make sure a temperature sensor or thermostat is installed to prevent overheating causing damage to products.Dimensions and specifications are subject to change without notice.
Specifications Current
1.41 A
Specifications Dc Voltage
4.2 V
Specifications Heater Material
Etched Foil
Specifications Industry Standardscertifications
CE Recognized | CRU®US Recognized | Reach Compliant | Restriction of Hazardous Substances (RoHS) Compliant

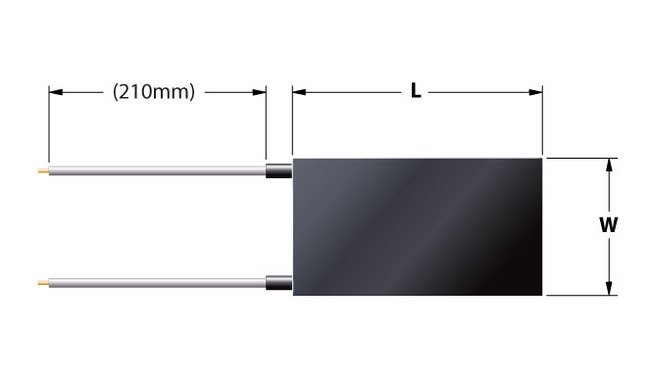

Specifications Lead Wire Length
210 mm
Specifications Length
80 mm
Specifications Note For Lead Wire Length
The length of the lead wires will be 210 mm unless otherwise specified.
Specifications Note For Reference Temperature Rise
Please note that the Temperature Rise value is for reference only. The actual temperature rise is dependent on the ambient environment and the application of the flexible heater.
Specifications Power
5.94 Watts
Specifications Power Density
0.12 W/cm²
Specifications Reference Temperature Rise
30 ºC
Specifications Resistance
2.97 Ohm
Specifications Shape
Rectangular
Specifications Type
Copper-Nickel (Cu-Ni) Alloy
Specifications Width
63 mm
