1/4in Male Pipe Weld Elbow | SMPWEI Series
1/4in Male Pipe Weld Elbow | SMPWEI Series
SKU:SMP-b7901c
High-quality 1/4in Male Pipe Weld Elbow with i-Fitting® design for precise and safe connections. Ensures efficiency and cost savings in demanding environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
1/4in Male Pipe Weld Elbow | SMPWEI Series
$29.99
Quantity: 1
Claim Your Seller Account
1/4in Male Pipe Weld Elbow | SMPWEI Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

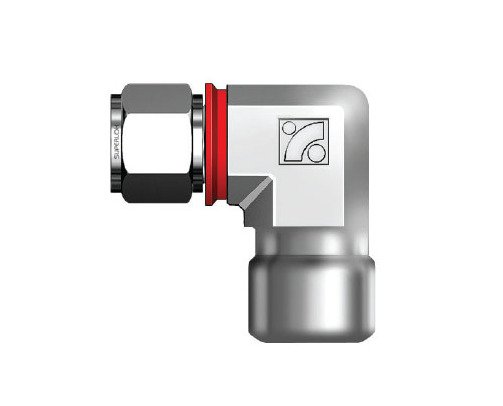

The SMPWEI Series 1/4 inch Tube Outside Diameter Male Pipe Weld Elbow is designed to connect fractional tubes to pipes with precision and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this elbow offers superior performance in demanding environments. Featuring the innovative i-Fitting® design with a built-in check ring for optimal compression, it ensures safety, efficiency, and cost savings in industrial applications. With dimensions that adhere to industry standards, this male pipe weld elbow is a dependable choice for secure valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

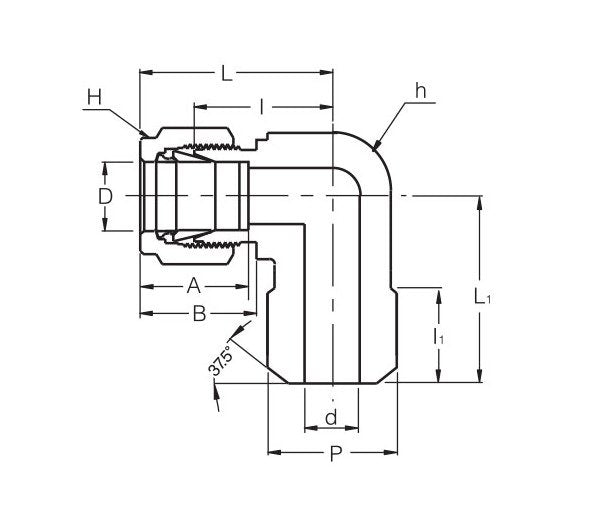

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
19.55 mm
Technical Specs Dimension I1
14.22 mm
Technical Specs Dimension L
26.90 mm
Technical Specs Dimension L2
23.37 mm
Technical Specs Male Pipe Outside Diameter
13.70 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Nominal Male Pipe Size P
1/4 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
