1-5/16 Inch B Style Loaded U-Cup Seal
1-5/16 Inch B Style Loaded U-Cup Seal
SKU:UCU-97d723
Premium 1-5/16 Inch B Style Loaded U-Cup Seal for rod and piston applications, withstanding -65ºF to +200ºF, and 0 to 5000 psi pressure.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
1-5/16 Inch B Style Loaded U-Cup Seal
$25.99
Quantity: 1
Claim Your Seller Account
1-5/16 Inch B Style Loaded U-Cup Seal
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

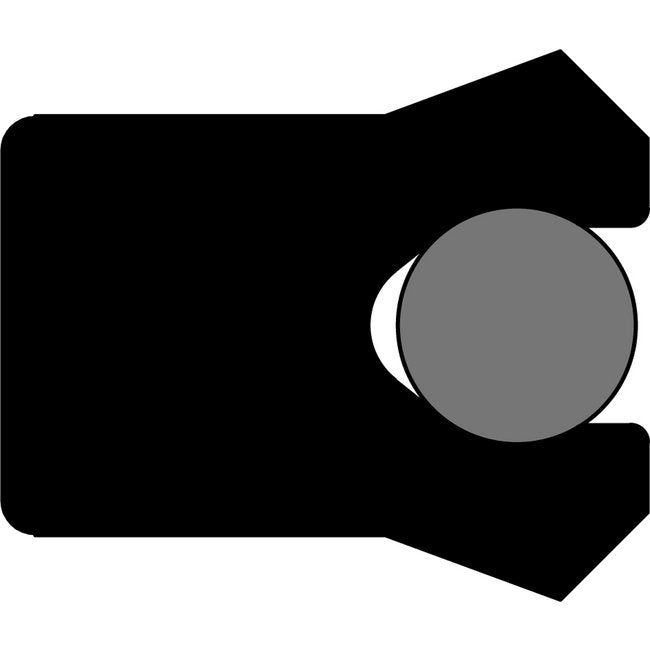

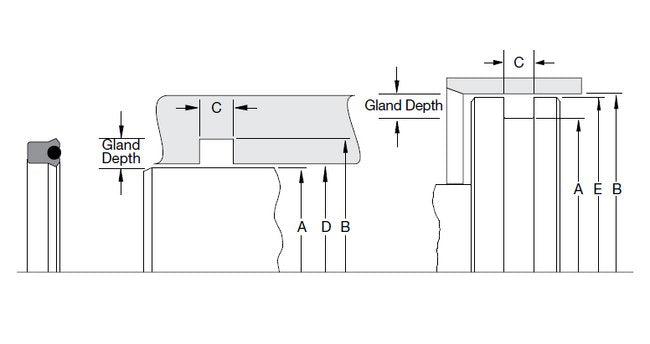

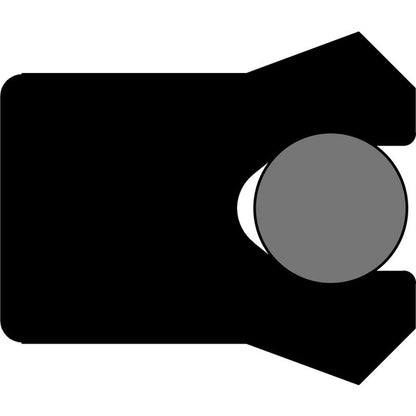

The 1-5/16 Inch B Style Loaded U-Cup Seal is a premium urethane seal designed for rod and piston applications, offering exceptional performance in temperatures ranging from -65ºF to +200ºF and pressures up to 5000 psi. With an inside diameter of 1-5/16 inches, outside diameter of 1-9/16 inches, and a height of 3/16 inches, this U-Cup seal is perfect for retrofitting existing seal grooves. Its B style construction ensures a secure fit and reliable sealing, making it an ideal choice for various industrial applications.
Product Specifications
Technical Specs Alternate Part
461512501312-187B
Technical Specs Height
3/16 in
Technical Specs Inside Diameter
1-5/16 in
Technical Specs Outside Diameter
1-9/16 in
Technical Specs Package Type
Each
Technical Specs Pressure
0 to 5000 psi
Technical Specs Shape
U-Cup
Technical Specs Style
B
Technical Specs Temperature
-65 to +200 ºF
