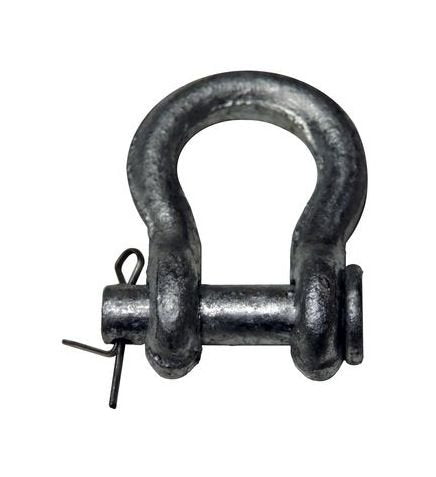

1.5" Anchor Shackles Round Pin, Hot Dip Galvanized Drop Forged

1.5" Anchor Shackles Round Pin, Hot Dip Galvanized Drop Forged

SKU:WIR-9d8141

Durable 1.5" Anchor Shackles for lifting/towing, conforms to Federal specs. 17-ton WLL.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

1.5" Anchor Shackles Round Pin, Hot Dip Galvanized Drop Forged

1.5" Anchor Shackles Round Pin, Hot Dip Galvanized Drop Forged

$49.99

Quantity: 1

Claim Your Seller Account

1.5" Anchor Shackles Round Pin, Hot Dip Galvanized Drop Forged

1.5" Anchor Shackles Round Pin, Hot Dip Galvanized Drop Forged

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1.5" Anchor Shackles Round Pin is a robust and reliable wire rope hardware essential for lifting or towing operations. Compliant with Federal Specification RR-C-271D, Type IV A, Grade A, Class 1 standards, it offers a working load limit of 17 tons, ensuring safety and durability. With a proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit, this shackle guarantees performance under pressure. Its hot dip galvanized drop-forged construction enhances corrosion resistance, making it ideal for challenging environments.

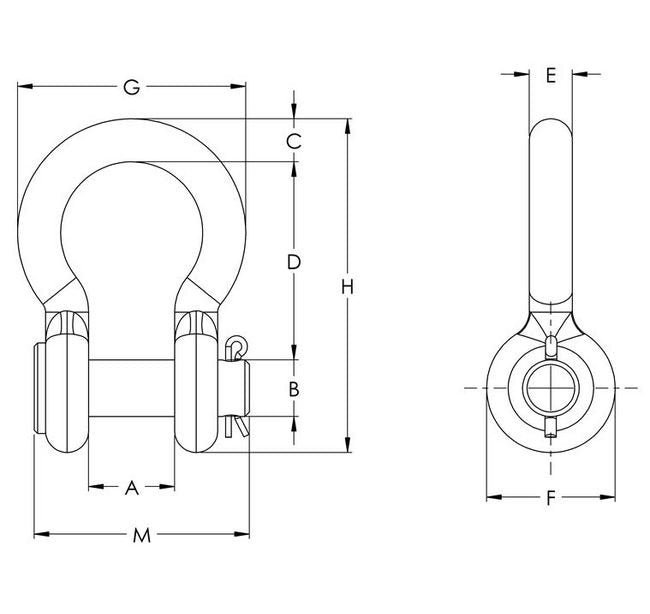

Product Specifications

Specifications A In
2.38
Specifications B In
1.63
Specifications C In
1.62
Specifications D In
5.75
Specifications E In
1.54
Specifications F In
3.63
Specifications G In
6.88
Specifications H In
10
Specifications M In
7.35
Specifications Nominal Size In
1.5
Specifications Weight Lbs
17.25
Specifications Wll Tons
17
CAGE
0T9L4
NAICS
332999
PSC
5340
