1.5" ATEX Top Discharge Diaphragm Poly Ball Valve Pump

Name: 1.5" ATEX Top Discharge Diaphragm Poly Ball Valve Pump
Brand: Springer Pumps, LLC
SKU: PRO-dcdcc8
Price: 1899.99 USD
Availability: OutOfStock

SKU:PRO-dcdcc8

High-performance 1.5" ATEX Top Discharge Diaphragm Poly Ball Valve Pump for reliable fluid handling.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1.5" ATEX Top Discharge Diaphragm Poly Ball Valve Pump is a high-performance solution designed for intermittent/on-demand applications with moderately abrasive fluids and solids. Constructed with conductive polypropylene materials, this pump ensures durability and reliability. It features a top discharge porting position, a maximum flow rate of 100 gpm, and a solids handling capacity of 0.47 inches. With options for TPE and PTFE diaphragms and check valves, this pump offers versatility and efficiency. Recommended accessory kits are available separately for optimal performance.

Product Specifications

Curves 0

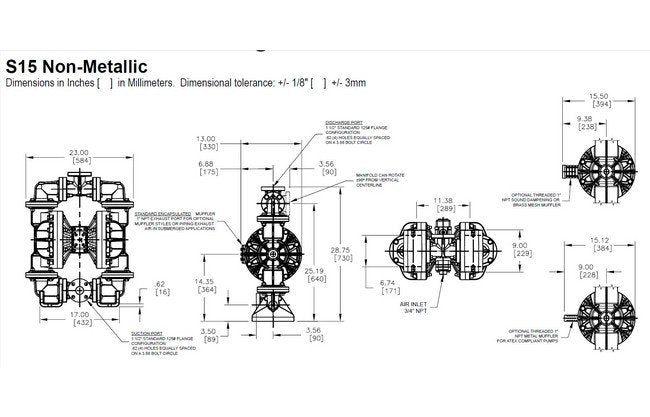

Dimensions 0

Dimensions

Specifications Check Valve Seat

Polypropylene

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Displacement Per Stroke

0.43 gal | 1.63 lit

Specifications Height

29 in | 730.25 mm

Specifications Inlet Size

1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm

Specifications Length

23 in | 0.5842 m | 584.20 mm

Specifications Max Flow Rate

100 gpm | 6000.00 gph | 378.54 lpm

Specifications Non Wetted Material

Conductive Polypropylene

Specifications Porting Position

Top Discharge

Specifications Sku

WRS15B3C2PCUS600SP

Specifications Solids Handling

0.47 in | 12 mm

Specifications Weight

85 lbs | 38.56 kg | 38.56 Kilogram

Specifications Wetted Moc

Conductive Polypropylene

Specifications Width

13 in | 0.3302 m | 330.20 mm

Category 6

Standard Duty Diaphragm Pumps
