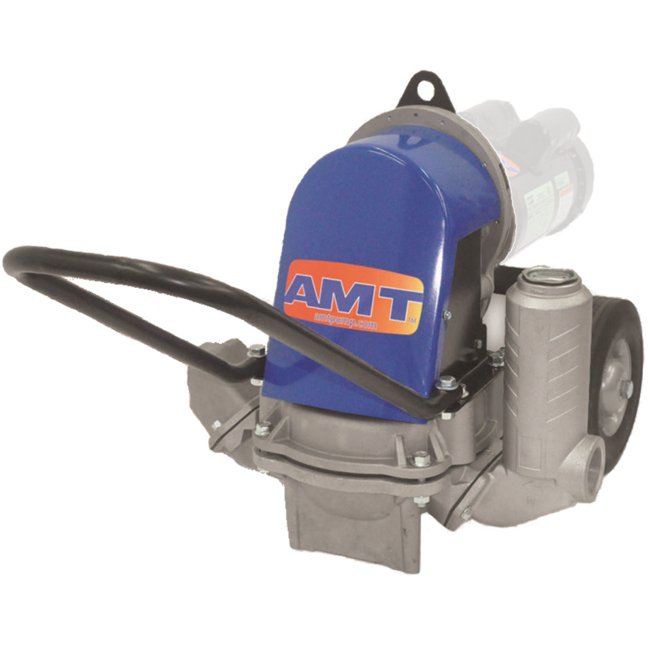

1.5 HP 3" NPT Self-Priming Diaphragm Pump Kit
1.5 HP 3" NPT Self-Priming Diaphragm Pump Kit
SKU:PRO-f67a31
Heavy-duty 1.5 HP 3" NPT self-priming diaphragm pump kit for mud, slurry, sewage, and thick liquids. Up to 90 GPM delivery.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
1.5 HP 3" NPT Self-Priming Diaphragm Pump Kit
$1,799.99
Quantity: 1
Claim Your Seller Account
1.5 HP 3" NPT Self-Priming Diaphragm Pump Kit
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1.5 HP 3" NPT Self-Priming Diaphragm Pump Kit is a heavy-duty solution for pumping mud, slurry, sewage, and thick liquids. With a 2-stage gear-driven transmission, this pump is designed for durability and high performance. Featuring a self-priming capability of up to 25 feet and a maximum solids handling of 1-5/8", it delivers up to 90 GPM. The modular design allows for easy maintenance, while the thermoplastic Santoprene diaphragm ensures reliable operation. This pump is suitable for various applications and is compatible with gasoline, diesel, or electric motors.

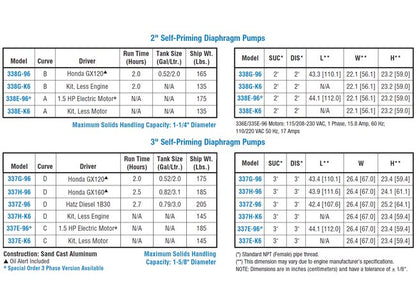

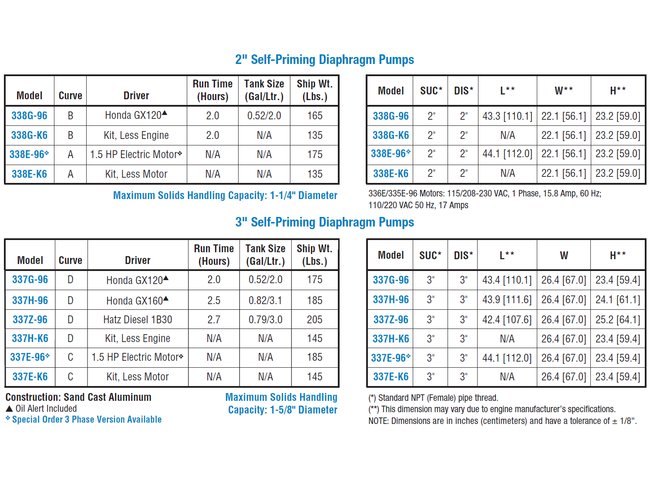

Product Specifications
Curves 0

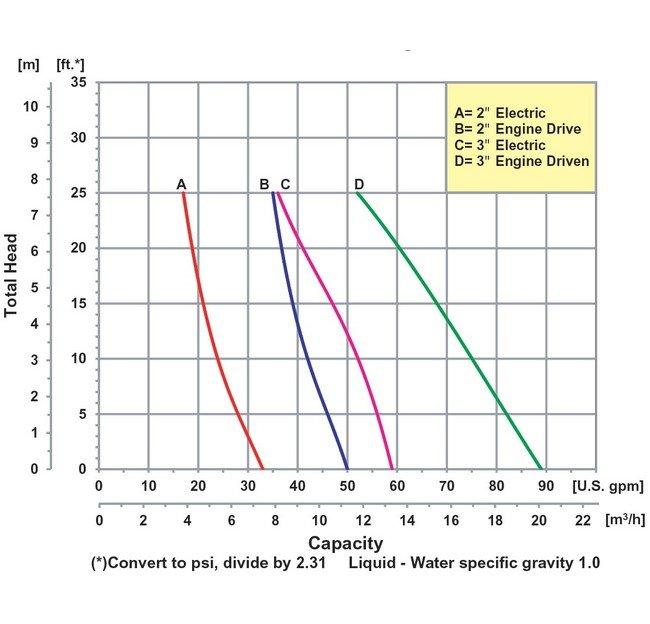

Performance Curves
Specifications 0
Sand Cast Aluminum Construction for Portability and DurabilityModular Component Design Permits Easy Maintenance and CleanoutMaximum Solids Handling up to 1-5/8 InSelf-Priming to 25 Ft. Lift90° Rotatable Base on All ModelsThermoplastic Santoprene DiaphragmDelivers up to 90 GPM
Specifications Customs Code
HTS Code 8413500050
Specifications Driver
56C Kit, Less Motor
Specifications Height
23 in | 594.36 mm
Specifications Inlet Size
3" FNPT
Specifications Manufacturer
American Machine and Tool Company
Specifications Motor Frame
56C
Specifications Porting Position
3" FNPT
Specifications Power
1.5 hp
Specifications Sku
AT337EK6SP
Specifications Weight
65.77 Kilogram | 65.77 kg | 145 lbs
Specifications Width
26 Inch | 26 in | 0.6706 m | 670.56 mm
