1.5 HP Electric Motor 2" NPT Self-Priming Diaphragm Pump

1.5 HP Electric Motor 2" NPT Self-Priming Diaphragm Pump

PRO-fb63f0

Powerful and reliable 1.5 HP Electric Motor Diaphragm Pump for efficient pumping of mud, slurry, sewage, and thick liquids. Self-priming and durable construction.

$1,799.99
$1,799.99
Sale

Initiate Order

1.5 HP Electric Motor 2" NPT Self-Priming Diaphragm Pump

1.5 HP Electric Motor 2" NPT Self-Priming Diaphragm Pump

$1,799.99

Quantity: 1

Claim Your Seller Account

1.5 HP Electric Motor 2" NPT Self-Priming Diaphragm Pump

1.5 HP Electric Motor 2" NPT Self-Priming Diaphragm Pump

$1,799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

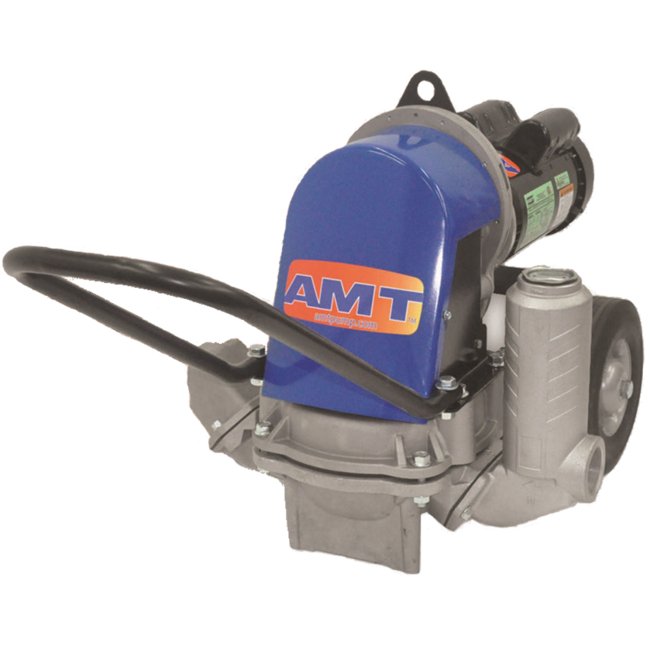

The 1.5 HP Electric Motor 2" NPT Self-Priming Diaphragm Pump by American Machine and Tool Company is a versatile solution for pumping mud, slurry, sewage, and thick liquids efficiently. Featuring sand cast aluminum construction for durability and portability, this pump offers a maximum solids handling of up to 1-5/8", self-priming capabilities to 25 ft, and a 90° rotatable base for flexible placement. With a Thermoplastic Santoprene Diaphragm and the ability to deliver up to 90 GPM, it ensures reliable performance. Ideal for water, wastewater, sump, utility, and sewage applications, this pump meets the demands of industrial and institutional settings.

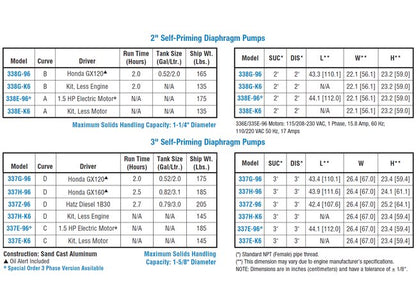

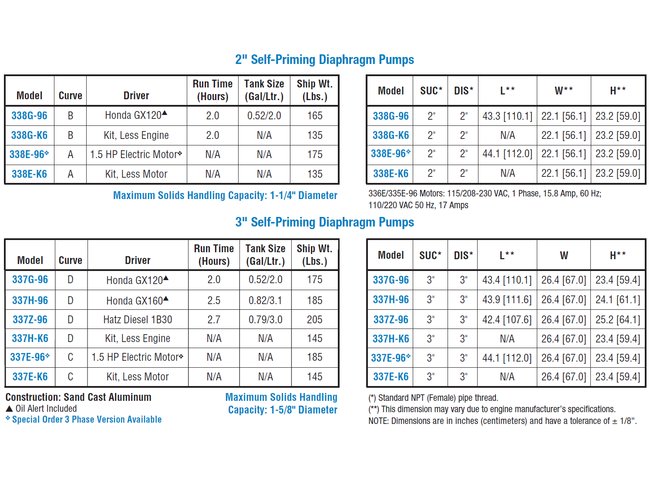

Product Specifications

Curves 0

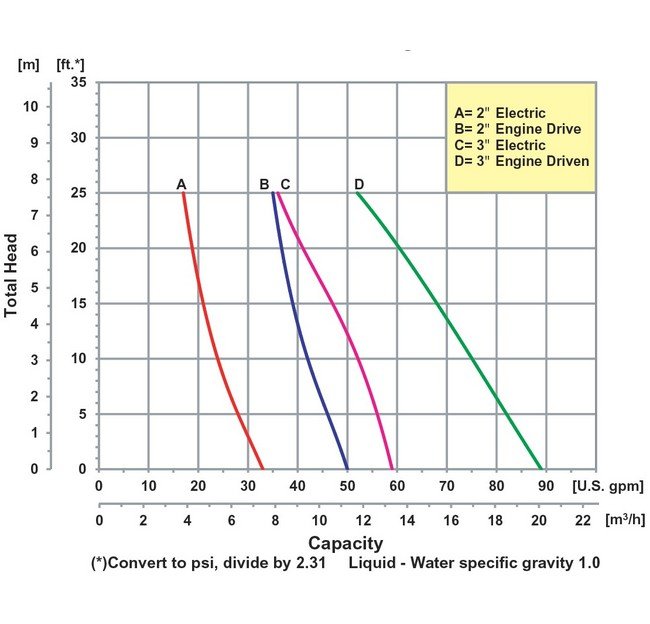

Performance Curves
Dimensions 0

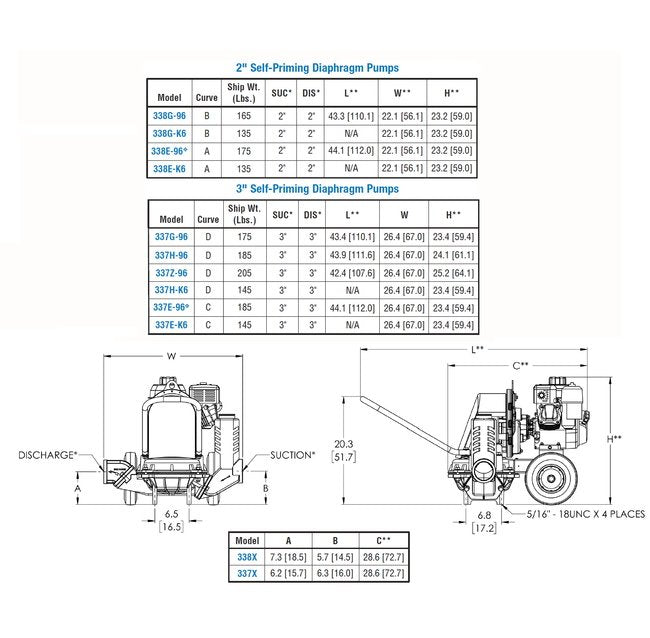

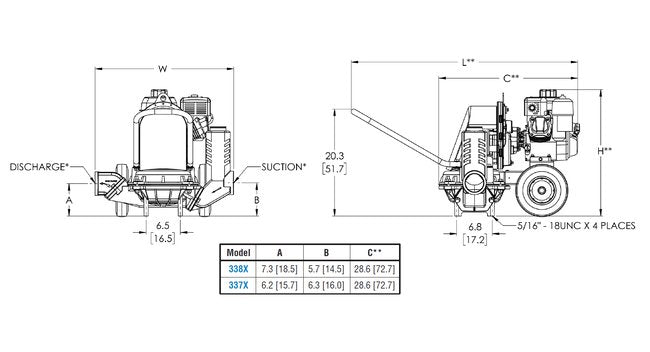

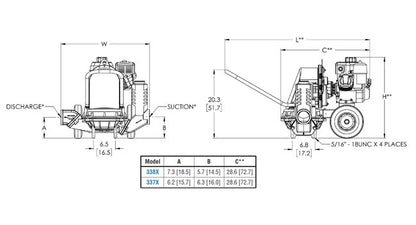

Dimensions
Specifications 0
Sand Cast Aluminum Construction for Portability and DurabilityModular Component Design Permits Easy Maintenance and CleanoutMaximum Solids Handling up to 1-5/8 InSelf-Priming to 25 Ft. Lift90° Rotatable Base on All ModelsThermoplastic Santoprene DiaphragmDelivers up to 90 GPM
Specifications Customs Code
HTS Code 8413500050Schedule B Code 8413500050ECCN Code EAR99
Specifications Driver
56C 230/460VAC @ 60HZ Electric Motor
Specifications Elastomers
Neoprene
Specifications Height
26 in | 660.40 mm
Specifications Inlet Size
2" FNPT
Specifications Length
45 Inch | 114.30 Centimeter | 3.75 ft | 45 in | 1.1430 m | 1143.00 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Motor Frame
56C
Specifications Power
1.5 hp
Specifications Sku
AT338T96SP
Specifications Weight
83.91 Kilogram | 83.91 kg | 185 lbs
Specifications Width
23 Inch | 23 in | 0.5842 m | 584.20 mm
