1.5 HP Electric Motor 3" NPT Self-Priming Diaphragm Pump

1.5 HP Electric Motor 3" NPT Self-Priming Diaphragm Pump

PRO-9be109

Powerful 1.5 HP Electric Diaphragm Pump for efficient sewage and wastewater handling. Self-Priming up to 25 ft lift, with up to 90 GPM flow rate.

$1,249.99
$1,249.99
Sale

Initiate Order

1.5 HP Electric Motor 3" NPT Self-Priming Diaphragm Pump

1.5 HP Electric Motor 3" NPT Self-Priming Diaphragm Pump

$1,249.99

Quantity: 1

Claim Your Seller Account

1.5 HP Electric Motor 3" NPT Self-Priming Diaphragm Pump

1.5 HP Electric Motor 3" NPT Self-Priming Diaphragm Pump

$1,249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

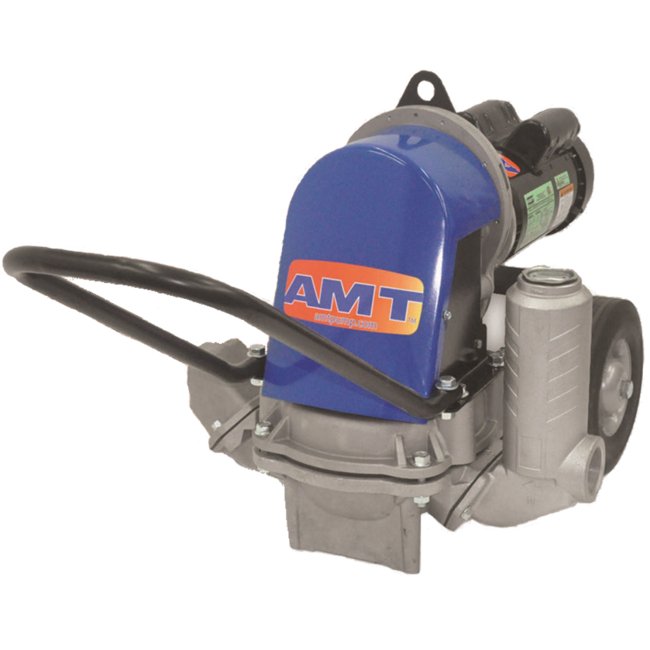

The 1.5 HP Electric Motor 3" NPT Self-Priming Diaphragm Pump by American Machine and Tool Company is a robust solution for pumping mud, slurry, sewage, and thick liquids with up to 1-5/8" solids handling capacity. Constructed with sand-cast aluminum for portability and durability, this pump features a thermoplastic Santoprene diaphragm, self-priming capability up to 25 ft lift, and a 90° rotatable base. With a maximum flow rate of 90 GPM, it comes with a 56C 230/460VAC @ 60HZ electric motor, making it ideal for various applications. The modular design allows for easy maintenance and cleanout, ensuring reliability and longevity.

Product Specifications

Curves 0

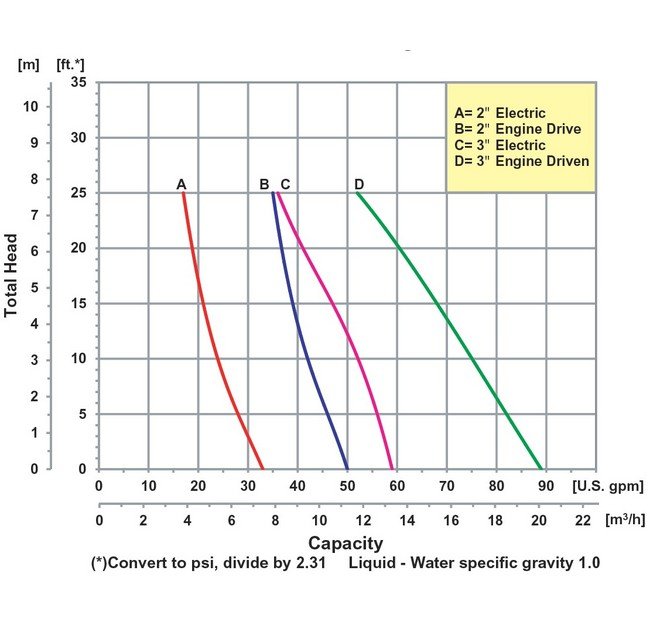

Performance Curves
Dimensions 0

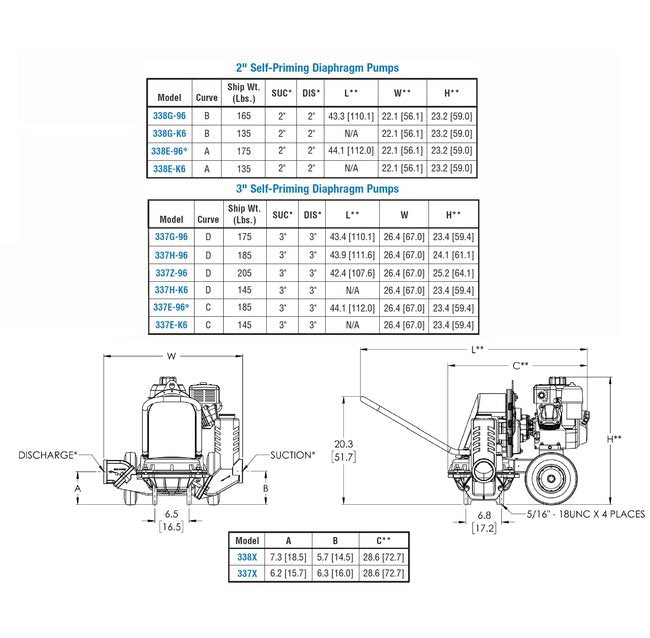

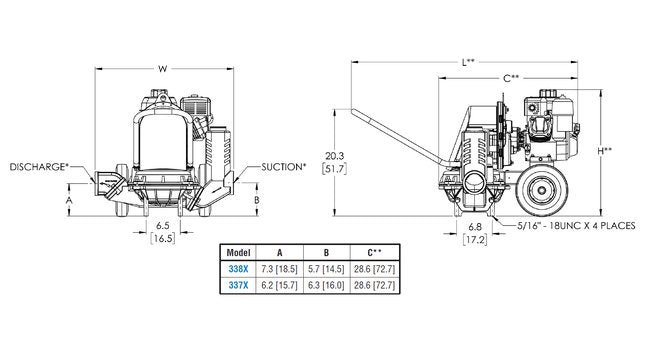

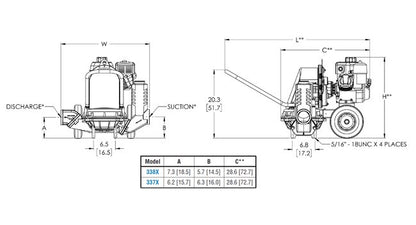

Dimensions

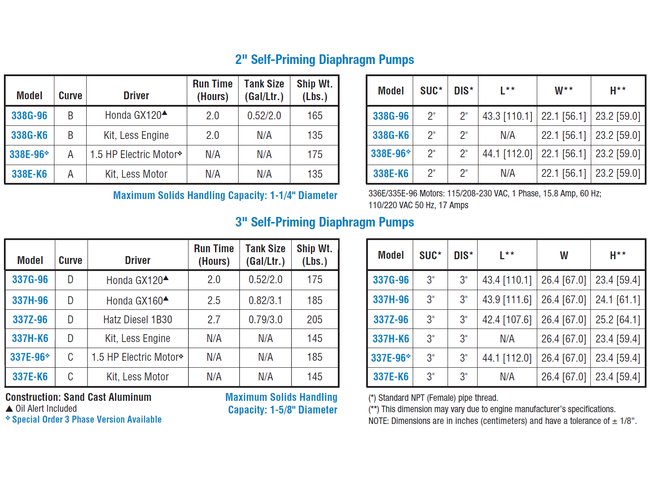

Specifications 0
Sand Cast Aluminum Construction for Portability and DurabilityModular Component Design Permits Easy Maintenance and CleanoutMaximum Solids Handling up to 1-5/8 InSelf-Priming to 25 Ft. Lift90° Rotatable Base on All ModelsThermoplastic Santoprene DiaphragmDelivers up to 90 GPM
Specifications Customs Code
HTS Code 8413500050Schedule B Code 8413500050ECCN Code EAR99
Specifications Driver
56C 230/460VAC @ 60HZ Electric Motor
Specifications Elastomers
Neoprene
Specifications Height
25 in | 635.00 mm
Specifications Inlet Size
3" FNPT
Specifications Length
45 Inch | 114.30 Centimeter | 3.75 ft | 45 in | 1.1430 m | 1143.00 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Motor Frame
56C
Specifications Power
1.5 hp
Specifications Sku
AT337T96SP
Specifications Weight
83.91 Kilogram | 83.91 kg | 185 lbs
Specifications Width
27 Inch | 27 in | 0.6858 m | 685.80 mm
