1.5 HP Self-Priming Diaphragm Pump with Electric Motor

1.5 HP Self-Priming Diaphragm Pump with Electric Motor

PRO-d9cd94

Powerful 1.5 HP Self-Priming Diaphragm Pump for sewage and wastewater applications. Handles solids up to 1-5/8" with ease.

$1,499.99
$1,499.99
Sale

Initiate Order

1.5 HP Self-Priming Diaphragm Pump with Electric Motor

1.5 HP Self-Priming Diaphragm Pump with Electric Motor

$1,499.99

Quantity: 1

Claim Your Seller Account

1.5 HP Self-Priming Diaphragm Pump with Electric Motor

1.5 HP Self-Priming Diaphragm Pump with Electric Motor

$1,499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

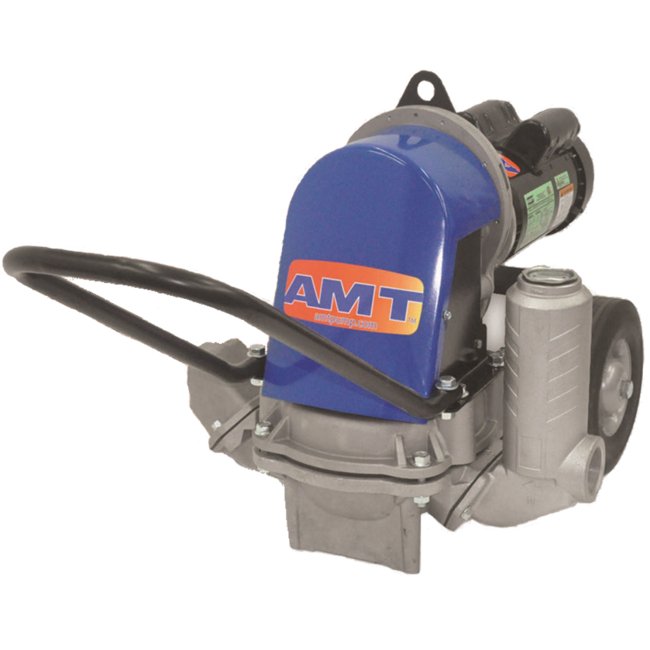

The AMT® 338E-96 1.5 HP Electric Motor 2" NPT Self-Priming Diaphragm Pump is a rugged pump designed for handling mud, slurry, sewage, and thick liquids with ease. Featuring a 2-stage forged gear transmission, this pump offers self-priming to 25 feet and can handle solids up to 1-5/8". Its sand-cast aluminum construction ensures portability and durability, while the modular design allows for easy maintenance. With a capacity of up to 90 GPM and a rotatable base for flexibility, this pump is ideal for various industrial applications.

Product Specifications

Curves 0

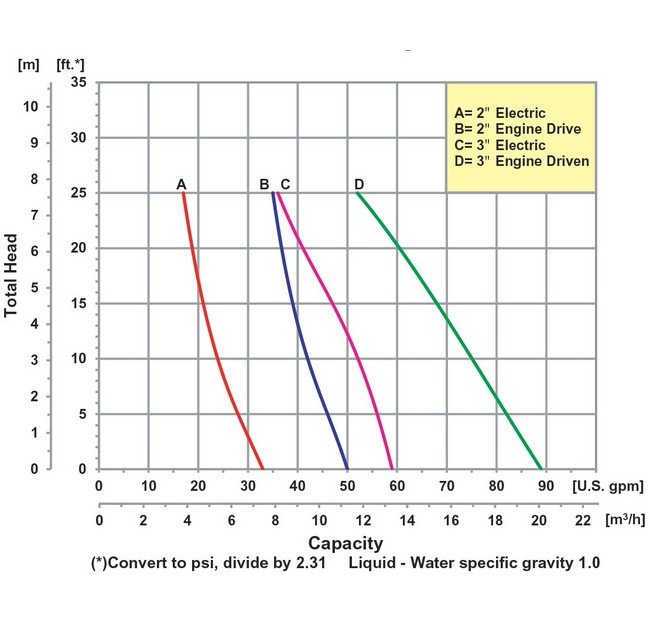

Performance Curves
Specifications 0
Sand Cast Aluminum Construction for Portability and DurabilityModular Component Design Permits Easy Maintenance and CleanoutMaximum Solids Handling up to 1-5/8 InSelf-Priming to 25 Ft. Lift90° Rotatable Base on All ModelsThermoplastic Santoprene DiaphragmDelivers up to 90 GPM
Specifications Customs Code
HTS Code 8413500050
Specifications Driver
56C 115VAC 60 HZ Electric Motor
Specifications Height
23 in | 589.28 mm
Specifications Inlet Size
2" FNPT
Specifications Length
44 Inch | 112.01 Centimeter | 3.68 ft | 44 in | 1.1201 m | 1120.14 mm
Specifications Manufacturer
American Machine and Tool Company
Specifications Motor Frame
56C
Specifications Porting Position
2" FNPT
Specifications Power
1.5 hp
Specifications Sku
AT338E96SP
Specifications Weight
74.84 Kilogram | 74.84 kg | 165 lbs
Specifications Width
22 Inch | 22 in | 0.5613 m | 561.34 mm
