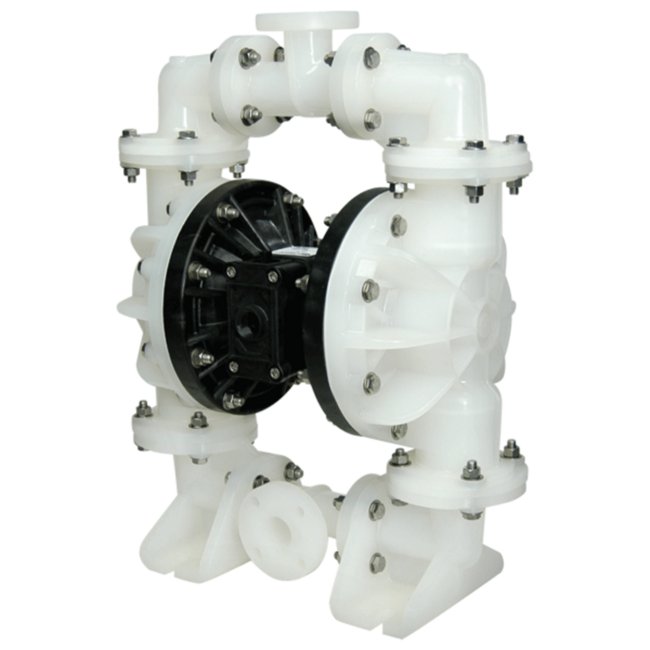

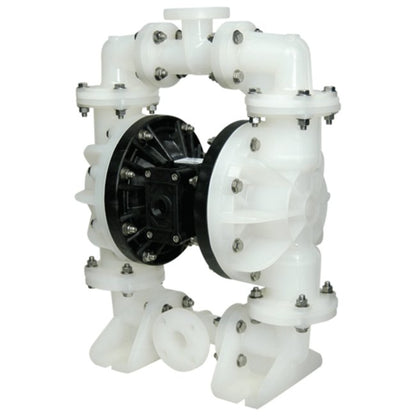

1.5" Standard Duty Top Discharge Poly Ball Valve Diaphragm Pump
1.5" Standard Duty Top Discharge Poly Ball Valve Diaphragm Pump
SKU:PRO-6c80f7
Reliable 1.5" Poly Ball Valve Diaphragm Pump for moderate abrasives. Top discharge, 100 gpm flow rate.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
1.5" Standard Duty Top Discharge Poly Ball Valve Diaphragm Pump
$1,299.99
Quantity: 1
Claim Your Seller Account
1.5" Standard Duty Top Discharge Poly Ball Valve Diaphragm Pump
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1.5" Standard Duty Top Discharge Poly Ball Valve Diaphragm Pump is designed for intermittent use with moderately abrasive fluids and solids. Constructed with conductive polypropylene, it offers reliability and efficiency. With a max flow rate of 100 gpm and top discharge porting, this pump is ideal for water, wastewater, and utility applications.
Product Specifications
Curves 0

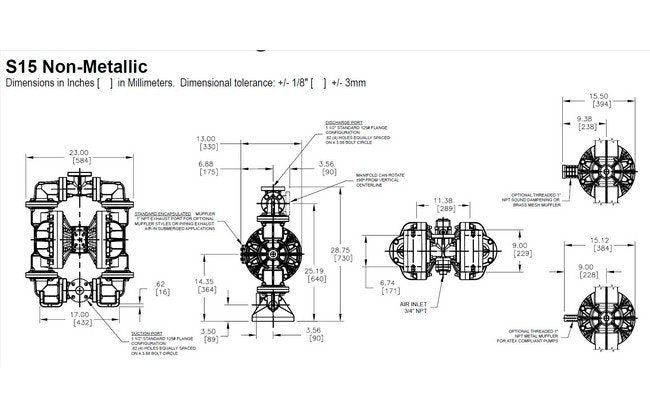

Dimensions 0
Dimensions
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm
Specifications Length
23 in | 0.5842 m | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm
Specifications Non Wetted Material
Conductive Polypropylene
Specifications Porting Position
Top Discharge
Specifications Sku
WRS15B3C1PCUS000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
85 lbs | 38.56 kg | 38.56 Kilogram
Specifications Wetted Moc
Conductive Polypropylene
Specifications Width
13 in | 0.3302 m | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
