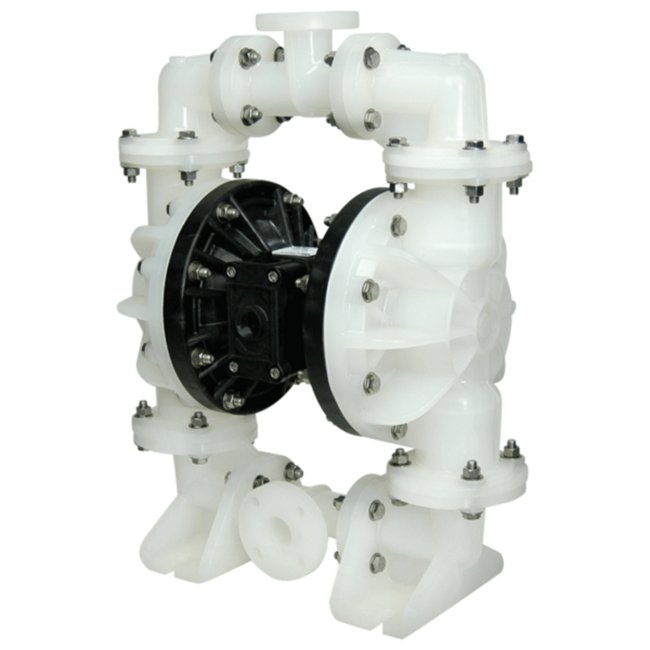

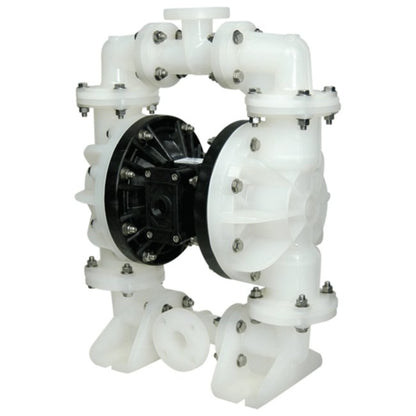

1.5" Top Discharge Poly Ball Valve Diaphragm Pump
1.5" Top Discharge Poly Ball Valve Diaphragm Pump
SKU:PRO-a04984
Reliable 1.5" Poly Ball Valve Diaphragm Pump for water and wastewater applications.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
1.5" Top Discharge Poly Ball Valve Diaphragm Pump
$1,499.99
Quantity: 1
Claim Your Seller Account
1.5" Top Discharge Poly Ball Valve Diaphragm Pump
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1.5" Top Discharge Poly Ball Valve Diaphragm Pump is designed for intermittent/on-demand use with portable, moderately abrasive fluids and solids. Constructed with Polypropylene, this pump offers reliability and durability. With features like a Ball Check Valve and a maximum flow rate of 100 gpm, it ensures efficient fluid handling. Ideal for water, wastewater, sump, or utility applications, this standard duty diaphragm pump delivers consistent performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0
Dimensions 0

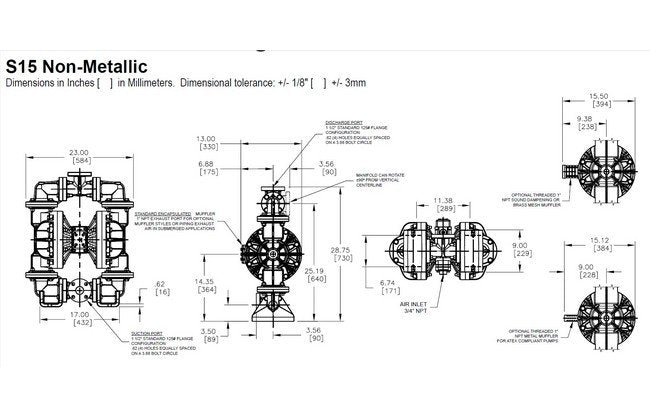

Dimensions
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm
Specifications Length
23 in | 0.5842 m | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm
Specifications Non Wetted Material
Polypropylene with PTFE Coated Hardware
Specifications Porting Position
Top Discharge
Specifications Sku
WRS15B3PZP1US000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
82 lbs | 37.19 kg | 37.19 Kilogram
Specifications Wetted Moc
Polypropylene
Specifications Width
13 in | 0.3302 m | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
