1.5" US Style Socket Weld Check Valve with 1.50 psi Cracking Pressure
1.5" US Style Socket Weld Check Valve with 1.50 psi Cracking Pressure
SKU:USS-245104
High-quality 1.5" US Style Socket Weld Check Valve with 1.50 psi Cracking Pressure for reliable performance and durability.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
1.5" US Style Socket Weld Check Valve with 1.50 psi Cracking Pressure
$299.99
Quantity: 1
Claim Your Seller Account
1.5" US Style Socket Weld Check Valve with 1.50 psi Cracking Pressure
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

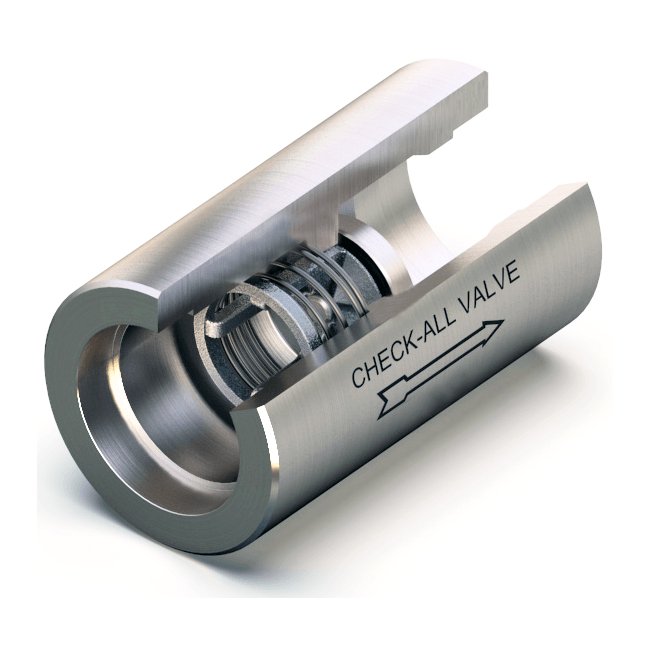

The 1.5" US Style Universal Socket Weld Check Valve is precision-machined from 316/316L Stainless Steel for durability and minimum pressure drop. Featuring Check-All® trim for reliability, this valve offers a wide range of seat materials and cracking pressures. Designed to ASME/ANSI B16.11 standards, it can also function as a low pressure relief valve or vacuum breaker. With non-shock pressure ratings up to 5000 psig, this valve ensures consistent performance. Caution: Weld carefully to prevent heat damage.
Product Specifications
Caution
Please take sufficient measures when welding to prevent heat build-up and possible damage to the valve seat.
Note
Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | 316L Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO
Specifications Body Material Availability
316/316L Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1-1/2 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
5000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
J
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
US
