1.53 kW HPRN Value Series Refrigerated Compressed Air Dryer
1.53 kW HPRN Value Series Refrigerated Compressed Air Dryer
SKU:REF-c4b7d5
Enhance air quality and efficiency with the 1.53 kW HPRN Value Series Refrigerated Compressed Air Dryer from Hankison®.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
1.53 kW HPRN Value Series Refrigerated Compressed Air Dryer
$1,899.99
Quantity: 1
Claim Your Seller Account
1.53 kW HPRN Value Series Refrigerated Compressed Air Dryer
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

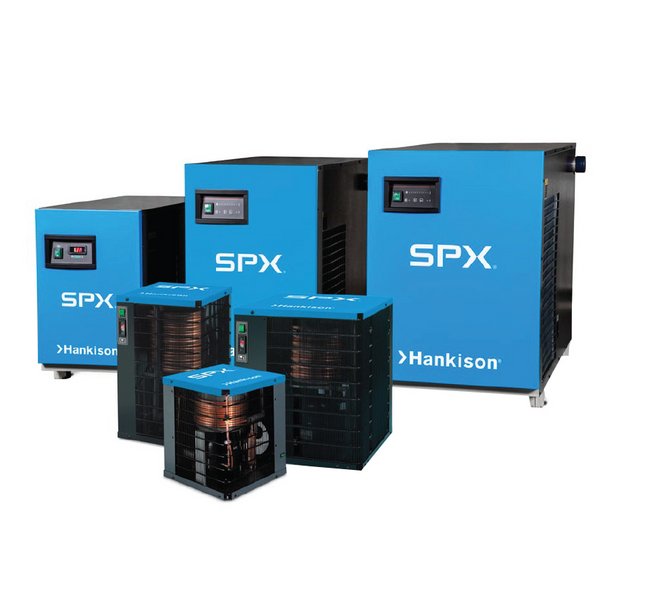

The 1.53 kW HPRN Value Series Refrigerated Compressed Air Dryer from Hankison® offers unmatched reliability and efficiency for air treatment solutions. With a compact design, stainless steel heat exchangers, and advanced condensate management features, this dryer ensures optimal performance in diverse environments. Meeting ISO 8573-1 Air Quality Class 4 standards, this dryer guarantees clean, dry air free from contaminants. Equipped with safety features and easy monitoring capabilities, the HPRN Series is ideal for industrial and institutional applications, providing a perfect balance of technology and simplicity.
Product Specifications

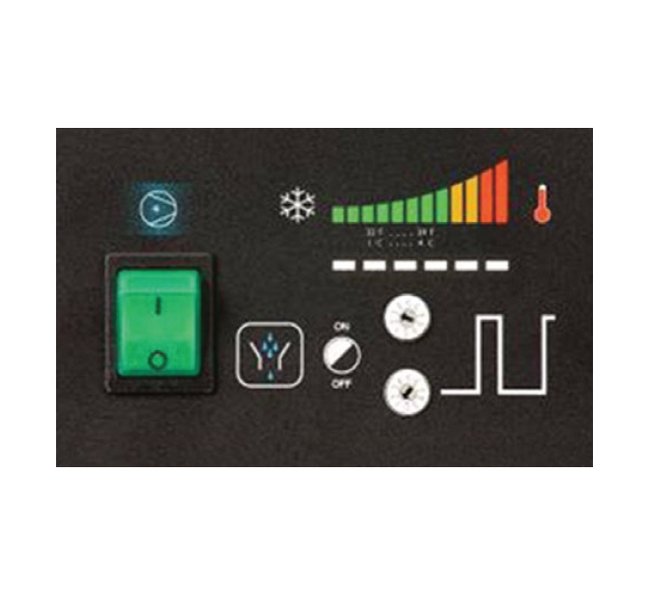

Ease Of Monitoring
Models 75 - 150: Illuminated On/Off Switch; dew point temperature display indicator to monitor inlet load conditions.Models 200 - 500 scfm: Illuminated On/Off Switch; LED dew point temperature display; dry alarm contact.Equipped with panel mounted drain timer control.

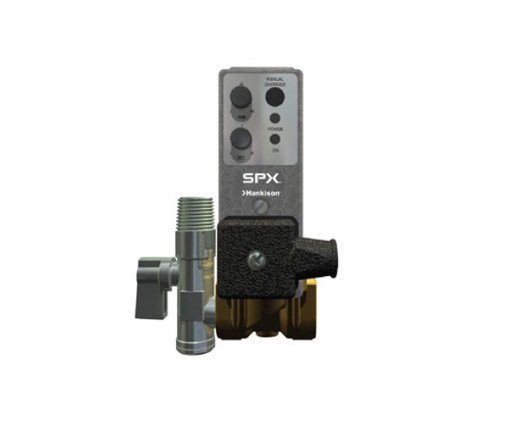

Efficient Condensate Management
Increased calming zone and integral demister/separator captures liquid condensate and solid particles<.ul>Effectively removes condensate from 0 to 100 % flow conditions without moisture carry-over.Furnished with a timed electric condensate drain.Includes a Y-strainer to protect the valve from rust and scale.
Globally Proven Performance
Stainless steel, cross flow heat exchangers optimize heat transfer and service life.ISO 8573-1 Air Quality : Class 4 pressure dew point.Smooth, non-fouling channels promote low pressure drop.Herringbone geometry stamped into the stainless steel plates creates turbulent flow, for a self-cleaning effect.No pre-filter required for full 2 year warranty.5 year heat exchanger warranty.Stainless steel inlet and outlet connections promote corrosion free service.Compact design saves floor space.
International Air Quality Class Standards Iso 8573 1 Air Quality
ISO 8573-1, the international standard for compressed air quality, defines the amount of contamination permissible in compressed air.The ISO standard identifies three primary forms of contamination in compressed air systems - solid particles, water and oil Contaminants are classified and assigned a quality class, ranging from Class 0, the highest purity level, to Class 6, the most relaxed.HPR and HPRN series refrigerated air dryers offer the perfect balance between technology and simplicity to dry compressed air systems to ISO 8573-1 Air Quality Class 4 to 5 - pressure dew points.

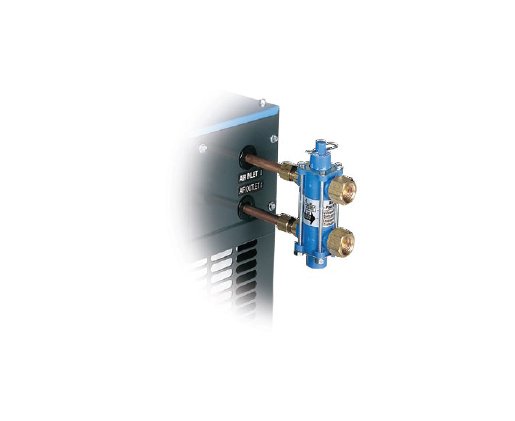

International Air Quality Class Standards Option After Filtratio
NGF series - HF grade filtration - provides high efficiency oil removal protecting downstream equipment .ISO Air Quality Class:Solids - Class 1Remaining Oil - Class1Removes 99.999+ % of solids ≥ 0.01 micronRemaining oil content < 0.01 mg/m3
International Air Quality Class Standards Option Pre Filtration
NGF series - PF grade filtration - removes solid and oil contaminants from the air stream before entering the dryer.ISO Air Quality Class:Solids - Class 2Remaining Oil - Class 4Removes solids 1.0 micron and largerRemaining oil content 2.0. mg/m³
Safety First Environmental Friendly
CFC free R134a refrigerant.CSA approved.
Specifications Depth
37 in
Specifications Frequency
60 Hz
Specifications Height
30 in
Specifications Inlet Connection Size
2 in
Specifications Inlet Connection Type
NPT
Specifications Maximum Ambient Air Temperature
110 ºF | 43 ºC
Specifications Maximum Inlet Air Pressure
232 psig | 16 bar
Specifications Maximum Inlet Air Temperature
120 ºF | 49 ºC
Specifications Minimum Ambient Air Temperature
45 ºF | 7 ºC
Specifications Minimum Inlet Air Pressure
10 psig | 1 bar
Specifications Minimum Inlet Air Temperature
40 ºF | 4 ºC
Specifications Outlet Connection Size
2 in
Specifications Outlet Connection Type
NPT
Specifications Phase
1
Specifications Power
1.53 kW
Specifications Rated Flow
200 scfm | 340 m³/h
Specifications Refrigerant
R407c
Specifications Series
Hankison® | HRP | HRPN
Specifications Voltage
230 V
Specifications Weight
196 lb
Specifications Width
18 in
