1,630 lb Multi-Vehicle Platform Carrier for Institutional Procurement
1,630 lb Multi-Vehicle Platform Carrier for Institutional Procurement
SKU:MUL-0bb3e2
Versatile 1,630 lb Multi-Vehicle Platform Carrier for heavy-duty applications - meets institutional procurement standards.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
1,630 lb Multi-Vehicle Platform Carrier for Institutional Procurement
$18,999.99
Quantity: 1
Claim Your Seller Account
1,630 lb Multi-Vehicle Platform Carrier for Institutional Procurement
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1,630 lb Weight Multi-Vehicle Platform Carrier is a versatile solution designed for heavy-duty applications, offering optimal balance in payload capacity, range, and maneuverability. Equipped with a Speed Rail Attach System, it allows for easy customization with various platform upfits. With a powerful 48V motor generating 19.5 hp, this carrier boasts a rated capacity of 3,500 lb and towing capacity of 3,500 lb. Its robust structural steel chassis, hydraulic steering, and semi-independent suspension ensure reliability and durability in demanding environments. Ideal for institutional and government use, this carrier meets stringent procurement standards for performance, safety, and efficiency.
Product Specifications
Body Accessories
In Motion BeeperForward and ReverseHour MeterDriver Seat Power Interlock SwitchHornSingle Point Battery Watering SystemSteel BulkheadBattery Discharge Indicator48 V DC To 12 V DC ConverterComposite Deck Board With High Density Polyethylene Overlay
Body Body
14 Gauge Structural Steel Smooth Plate Front Body Panels
Body Lighting
Dual Recessed Head, Tail and Brake Lights
Body Passenger Capacity
Two with Up to 14 (Optional Tram Package Seating)
Body Seating
Adjustable Bucket Seats with Arm Rests
Chassis Brakes
Hydraulic BrakesFront Disc/Rear DrumHand Operated Parking Brake
Chassis Frame
Structural Steel Channel Rail Style Chassis
Chassis Steering
Hydraulic Pump and Piston - Manually Operated
Chassis Suspension
Semi-Independent with Leaf Springs
Chassis Tires
145/R12 radial pneumatic tires 21" x 5.5" x 12"

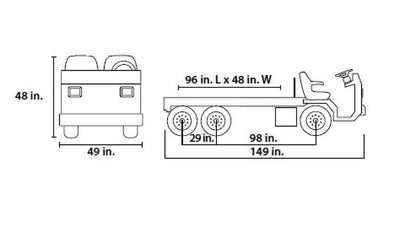

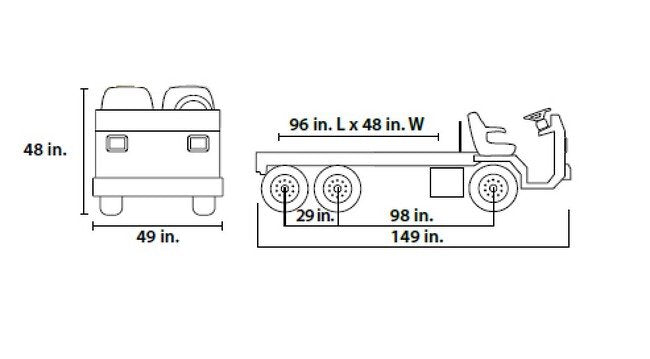

Dimensions Ground Clearance
5 in
Dimensions Load Bed Height
28 in
Dimensions Step Height
11.5 in
Note
Features, options, specifications, color availability and model designation are subject to change without notice. Some vehicles are pictured with options that may be available at extra cost or may not be available on some models. Ask your dealer about the availability of options and verify that the vehicle you order includes the equipment you require.All specifications are subject to change without notice.
Performance Curb To Curb Turning Radius
372 in
Performance Maximum Forward Speed
15 mph
Performance Range
0 to 30 mil
Performance Voltage
48 V
Power Train Batteries
Eight, 6 Volt, 232 Amp Hour, 122 Minute
Power Train Charger
Built-In, Micro-Processor Controlled, Fully Sealed, Global, 110 - 240 VAC, 50/60 HZ
Power Train Controller Rating
500 A
Power Train Controller Type
Programmable, Solid State, Reduced Speed Reverse with Diagnostic LED & Calibrator Interface
Power Train Directional Control
Dash-Mounted Safety Directional Keyswitch
Power Train Drive Unitdifferential
Direct Drive, Oil Bath, Helical Gears, 16.77:1
Power Train Motor
Separately Excited, NEMA Class H Temperature Rated
Power Train Motor Braking Mode
Regenerative and Pedal Proportional Braking with Top Speed Limiting
Power Train Power
19.5 hp
Technical Specs Brands
Columbia
Weight And Capacity Rated Capacity
3,500 lb
Weight And Capacity Towing Capacity
3,500 lb
Weight And Capacity Vehicle Weight
1,630 lb
