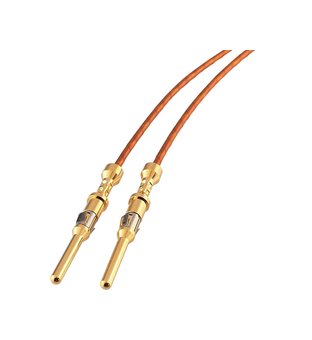

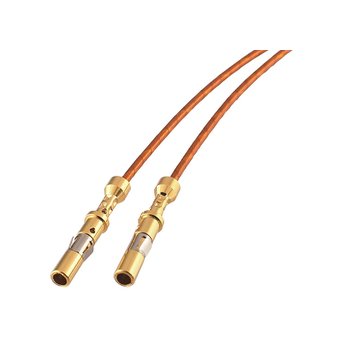

1.6mm Beryllium Copper Socket/Plug Pin with Wire for Vacuum

Name: 1.6mm Beryllium Copper Socket/Plug Pin with Wire for Vacuum
Brand: JC CHERRY INC.
SKU: HER-ee8bf3
Price: 29.99 USD
Availability: OutOfStock

SKU:HER-ee8bf3

Enhance vacuum connections with our 1.6mm Beryllium Copper Socket/Plug Pin. Ideal for challenging vacuum applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your vacuum connections with our 1.6mm Beryllium Copper Socket/Plug Pin. Crafted from Copper Alloy with Gold (Au) Plating Over Nickel (Ni), this pin offers low outgassing properties and operates flawlessly in temperatures ranging from -55 to +150 ºC. With an Acceptable Plug Diameter of 1.6mm, it accommodates #20 to #22 AWG wire, carrying a current rating of 3A at 25 ºC. Designed for challenging vacuum applications, this connector is a trusted choice for high-demand environments.

Product Specifications

Reasons Why Our Vacuum Connectors Are Chosen

The challenging development of vacuum componentsAs a connector manufacturer, we specialize in meeting unique demands and aligning our development with your needs. We have a track record of developing crucial vacuum components that are difficult for others, drawing on our extensive experience. Please feel free to consult with us.The Lineup of related components usable inside vacuum containersOur products cater to a wide range of fields and demanding conditions, including probes, cables, and connectors that support high current and high voltage applications.

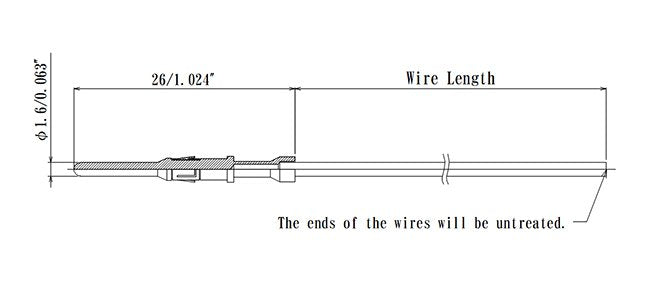

Specifications Acceptable Plug Diameter

1.6 mm | 0.063 in

Specifications Applicable Wire

#20 to #22; AWG

Specifications Current Rating At 25 Degree Celsius C Temperature

3 A

Specifications Materials

Copper Alloy, Gold (Au) Plating Over Nickel (Ni)

Specifications Operating Temperature

-55 to +150 ºC
