1,780 lb Multi-Vehicle Platform Carrier

1,780 lb Multi-Vehicle Platform Carrier

MUL-7a170f

Transport heavy payloads with precision and efficiency using the versatile 1,780 lb Multi-Vehicle Platform Carrier for industrial and government applications.

$4,999.99
$4,999.99
Sale

Initiate Order

1,780 lb Multi-Vehicle Platform Carrier

1,780 lb Multi-Vehicle Platform Carrier

$4,999.99

Quantity: 1

Claim Your Seller Account

1,780 lb Multi-Vehicle Platform Carrier

1,780 lb Multi-Vehicle Platform Carrier

$4,999.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

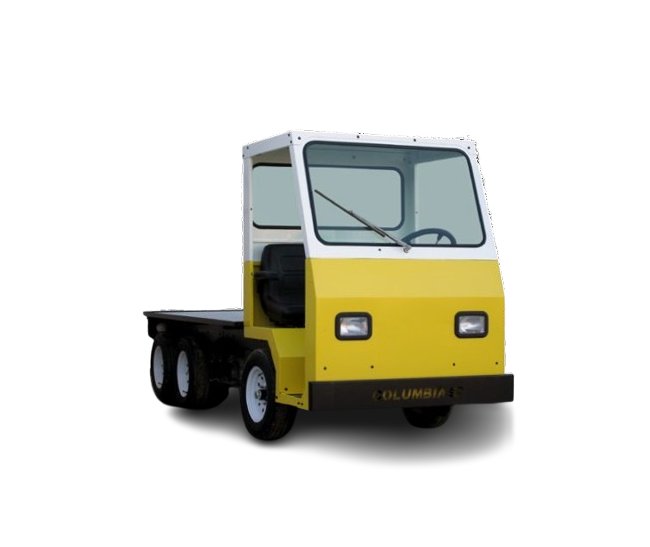

The 1,780 lb Multi-Vehicle Platform Carrier (MVP) is a robust solution that offers unparalleled performance and versatility for transporting heavy payloads. Equipped with two drive axle and battery pack configurations, this carrier maintains optimal balance and efficiency. Its Speed Rail Attach System allows for customizable platform upfits, making it adaptable to various applications such as dump beds and van bodies. With a payload capacity of 6,000 lb and towing capacity of 6,000 lb, the MVP ensures reliable and efficient transportation across different terrains, meeting the demanding requirements of industrial and government buyers.

Product Specifications

Body Accessories
In Motion BeeperForward and ReverseHour MeterDriver Seat Power Interlock SwitchHornSingle Point Battery Watering SystemSteel BulkheadBattery Discharge Indicator48 V DC To 12 V DC ConverterComposite Deck Board With High Density Polyethylene Overlay
Body Body
14 Gauge Structural Steel Smooth Plate Front Body Panels
Body Lighting
Dual Recessed Head, Tail and Brake Lights
Body Passenger Capacity
Two with Up to 14 (Optional Tram Package Seating)
Body Seating
Adjustable Bucket Seats with Arm Rests
Chassis Brakes
Hydraulic BrakesFront Disc/Rear DrumHand Operated Parking Brake
Chassis Frame
Structural Steel Channel Rail Style Chassis
Chassis Steering
Hydraulic Pump and Piston - Manually Operated
Chassis Suspension
Semi-Independent with Leaf Springs
Chassis Tires
145/R12 radial pneumatic tires 21" x 5.5" x 12"

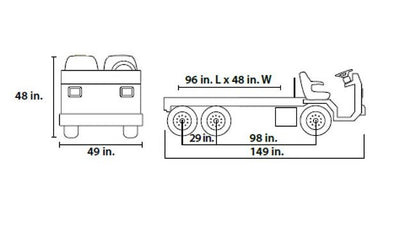

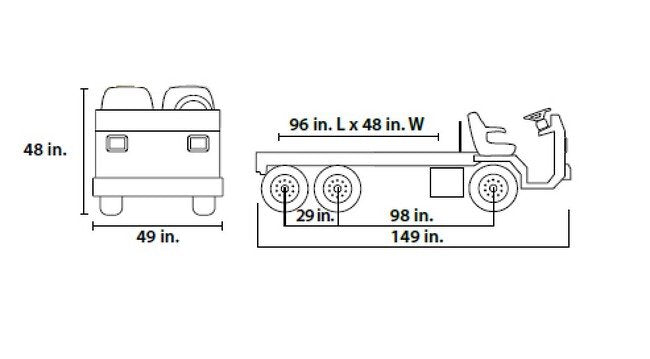

Dimensions Ground Clearance
5 in
Dimensions Load Bed Height
28 in
Dimensions Step Height
11.5 in
Note
Features, options, specifications, color availability and model designation are subject to change without notice. Some vehicles are pictured with options that may be available at extra cost or may not be available on some models. Ask your dealer about the availability of options and verify that the vehicle you order includes the equipment you require.All specifications are subject to change without notice.
Performance Curb To Curb Turning Radius
368 in
Performance Maximum Forward Speed
15 mph
Performance Range
0 to 30 mil
Performance Voltage
48 V
Power Train Batteries
Eight, 6 Volt, 232 Amp Hour, 122 Minute
Power Train Charger
Built-In, Micro-Processor Controlled, Fully Sealed, Global, 110 - 240 VAC, 50/60 HZ
Power Train Controller Rating
500 A
Power Train Controller Type
Programmable, Solid State, Reduced Speed Reverse with Diagnostic LED & Calibrator Interface
Power Train Directional Control
Dash-Mounted Safety Directional Keyswitch
Power Train Drive Unitdifferential
Direct Drive, Oil Bath, Helical Gears, 16.77:1
Power Train Motor
Totally Enclosed, NEMA Class H Temperature Rated Motor
Power Train Motor Braking Mode
Regenerative and Pedal Proportional Braking with Top Speed Limiting
Power Train Power Dual
16.8 hp
Technical Specs Brands
Columbia
Weight And Capacity Rated Capacity
6,000 lb
Weight And Capacity Towing Capacity
6,000 lb
Weight And Capacity Vehicle Weight
1,780 lb
