1/8 in Hex Nipple Fitting - IHN Series
1/8 in Hex Nipple Fitting - IHN Series
SKU:IHN-f75a88
High-quality 1/8 in Hex Nipple Fitting for secure pipe connections, male NPT to male ISO parallel pipe threads. Corrosion-resistant 316 Stainless Steel, Brass, or Carbon Steel construction.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
1/8 in Hex Nipple Fitting - IHN Series
$12.99
Quantity: 1
Claim Your Seller Account
1/8 in Hex Nipple Fitting - IHN Series
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

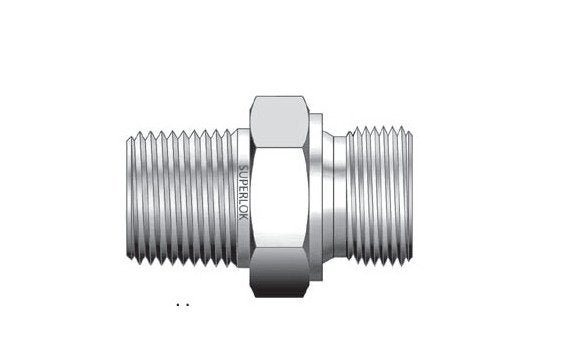

The IHN Series 1/8 Inch Hex Nipple Fitting is designed for seamless connection with male NPT to male ISO parallel pipe threads. Made from high-quality 316 Stainless Steel, Brass, or Carbon Steel, this fitting ensures durability and corrosion resistance. With precise dimensions of 27.7mm (A), 4.1mm (E), 14.2mm (H), 8mm (B), and 13.7mm (C), it meets rigorous industry standards for reliable performance. Ideal for applications requiring secure pipe connections that adhere to British Standard Pipe (BSP), International Organization for Standardization (ISO), and National Pipe Thread (NPT) requirements.
Product Specifications
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

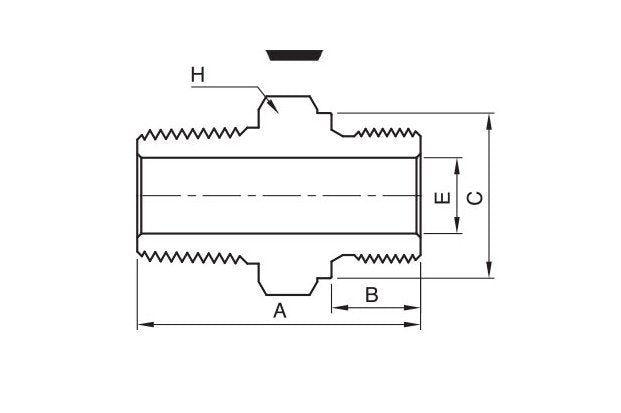

Technical Specs Dimension A
27.7 mm
Technical Specs Dimension B
8 mm
Technical Specs Dimension C
13.7 mm
Technical Specs Dimension E
4.1 mm
Technical Specs Dimension H
14.2 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size International Organization For Standar
1/8 in
Technical Specs Pipe Size National Pipe Thread Npt
1/8 in
Technical Specs Thread Type
British Standard Pipe (BSP) | International Organization for Standardization (ISO) | National Pipe Thread (NPT)
