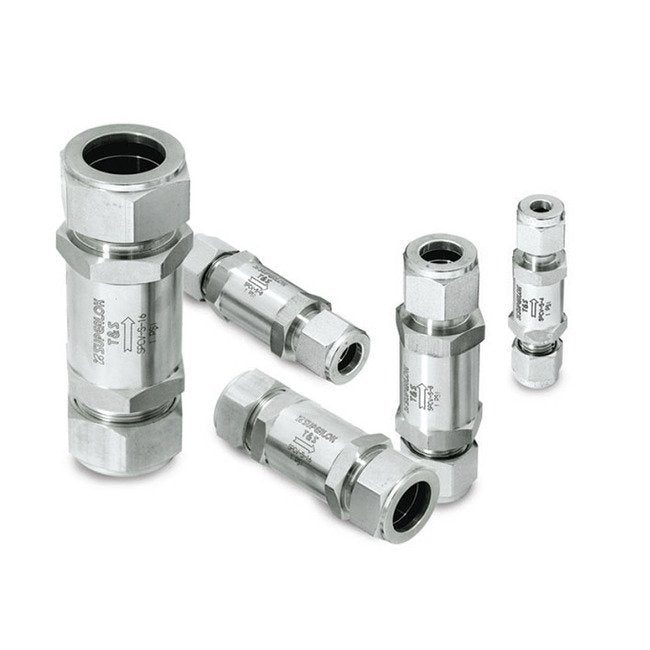

1/8 Inch SUPERLOK Check Valve - SPCV Series
1/8 Inch SUPERLOK Check Valve - SPCV Series
SKU:SPC-b7a420
High-performance 1/8 Inch Check Valve with 0-3000 psig pressure rating, ideal for critical applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
1/8 Inch SUPERLOK Check Valve - SPCV Series
$59.99
Quantity: 1
Claim Your Seller Account
1/8 Inch SUPERLOK Check Valve - SPCV Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SPCV Series 1/8 Inch SUPERLOK End Connections Check Valve is designed for precision and reliability, with a pressure rating of 0 to 3000 psig and a temperature rating of up to 375°F. Constructed with high-quality 316 Stainless Steel and offering a variety of end connections, this valve ensures optimal performance in critical applications. Each valve is rigorously tested for cracking pressure and reseal performance, making it ideal for both consumer and institutional buyers seeking top-tier quality and compliance with industry standards.
Product Specifications
Features Features
Fixed cracking pressure.Variety of end connections.Each and every valves are tested for cracking pressure and reseal performance at the factory.
Note Note

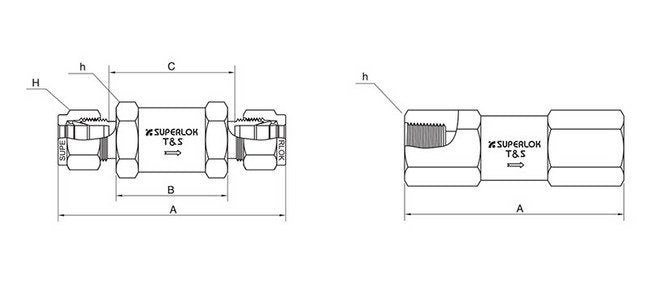

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
57.15 mm
Technical Specs Dimension B
26.6 mm
Technical Specs Dimension C
31.2 mm
Technical Specs Dimension H
11.11 mm
Technical Specs End Connections
1/8 in. SUPERLOK®
Technical Specs Flow Coefficients Cv
0.1
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
0 to 3000 psig
Technical Specs Seal Material
Ethylene Propylene Diene Monomer (EPDM) | Fluorocarbon (FKM) | Nitrile Butadiene Rubber (NBR) | Perfluoroelastomer (FFKM)
Technical Specs Temperature Rating With Fluorocarbon Fkm O Ring
375 ºF | 191 ºC
