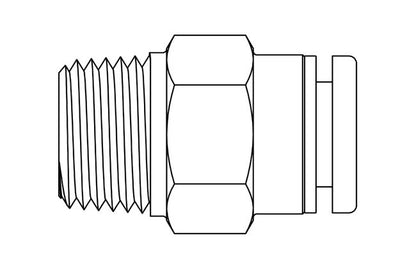

1/8" NPT Precision Metal Push-On Tube Adapters
1/8" NPT Precision Metal Push-On Tube Adapters
SKU:PRE-794c85
Enhance fluid control with precision metal 1/8" NPT tube adapters, ensuring reliable performance and precise flow control.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
1/8" NPT Precision Metal Push-On Tube Adapters
$24.99
Quantity: 1
Claim Your Seller Account
1/8" NPT Precision Metal Push-On Tube Adapters
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control system with the 1/8" NPT Precision Metal Push-On Tube Adapters. Crafted from durable brass and Buna-N seal material, these adapters ensure reliable performance. With a CV of 0.033 and a maximum operating pressure of 140 psig, they deliver precise flow control. Tested airflow data enables accurate flow rate adjustments. Compliant with Federal/DoD procurement standards, these adapters are ideal for government and institutional applications.
Product Specifications
Dimensions Orifice Diameter
0.039 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 9.45 | 5 psig: 20.6 | 10 psig: 28.8 | 15 psig: 35.4 | 20 psig: 41.5 | 25 psig: 47.9 | 30 psig: 54.2 | 40 psig: 67.0 | 50 psig: 79.7 | 60 psig: 92.8 | 70 psig: 106 | 80 psig: 119 | 90 psig: 132 | 100 psig: 146
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 4.46 | 5 psig (34.5 kPag): 9.7 | 10 psig (69.0 kPag): 13.6 | 15 psig (103.4 kPag): 16.7 | 20 psig (137.9 kPag): 19.6 | 25 psig (172.4 kPag): 22.6 | 30 psig (206.9 kPag): 25.6 | 40 psig (275.8 kPag): 31.6 | 50 psig (344.8 kPag): 37.6 | 60 psig (413.7 kPag): 43.8 | 70 psig (482.7 kPag): 50 | 80 psig (551.6 kPag): 56.2 | 90 psig (620.6 kPag): 62.4 | 100 psig (689.5 kPag): 68.7
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 17.4 | 20 In. Hg.: 17.4 | 30 In. Hg.: 17.4
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 8.22 | 20 In. Hg. (508 Mm. Hg.): 8.22 | 30 In. Hg. (762 Mm. Hg.): 8.22
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 13.3 | 10 In. Hg.: 16.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 6.29 | 10 In. Hg. (254 Mm. Hg.): 7.85
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.033 | 2 psig: 0.047 | 3 psig: 0.057 | 4 psig: 0.066 | 5 psig: 0.074 | 6 psig: 0.081 | 7 psig: 0.087 | 8 psig: 0.093 | 9 psig: 0.099 | 10 psig: 0.104 | 15 psig: 0.128 | 20 psig: 0.148 | 30 psig: 0.181 | 40 psig: 0.209 | 50 psig: 0.233 | 60 psig: 0.256 | 70 psig: 0.276 | 80 psig: 0.295 | 90 psig: 0.313 | 100 psig: 0.330
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.125 | 2 psig (13.8 kPag): 0.177 | 3 psig (20.7 kPag): 0.216 | 4 psig (27.6 kPag): 0.250 | 5 psig (34.5 kPag): 0.279 | 6 psig (41.4 kPag): 0.306 | 7 psig (48.3 kPag): 0.331 | 8 psig (55.2 kPag): 0.353 | 9 psig (62.1 kPag): 0.375 | 10 psig (69 kPag): 0.395 | 15 psig (103.4 kPag): 0.484 | 20 psig (137.9 kPag): 0.559 | 30 psig (206.9 kPag): 0.684 | 40 psig (275.8 kPag): 0.79 | 50 psig (344.8 kPag): 0.883 | 60 psig (413.7 kPag): 0.968 | 70 psig (482.7 kPag): 1.045 | 80 psig (551.6 kPag): 1.117 | 90 psig (620.6 kPag): 1.185 | 100 psig (689.5 kPag): 1.249
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.033
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
39
Specifications Screened
None
Specifications Seal Material
Buna-N
