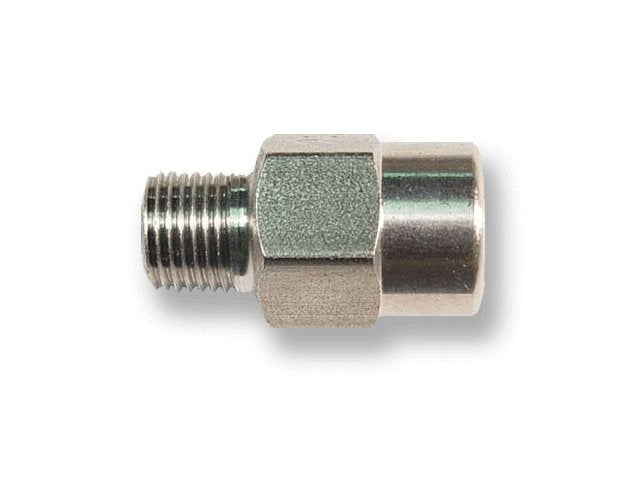

1/8in FNPT Brass Piston Check Valve
1/8in FNPT Brass Piston Check Valve
SKU:PIS-57ebbb
Secure bubble-tight seal with Brass construction, 1 psi cracking pressure, and 500 psi max pressure. Optional springs/seals available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
1/8in FNPT Brass Piston Check Valve
$29.99
Quantity: 1
Claim Your Seller Account
1/8in FNPT Brass Piston Check Valve
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PSCV Series 1/8 Inch Female National Pipe Thread Brass Piston Check Valve provides a secure bubble-tight seal, with a 1 psi cracking pressure, a 500 psi maximum pressure, and a 250°F maximum working temperature. Built from Brass with a 302 Stainless Steel spring and Steel retainer, it ensures durability and reliability. This valve is also available in 316 Stainless Steel with Hastelloy® spring, catering to different pressure ranges. Choose from optional springs (3, 5, 9, 15, 20, 25 psi) and seal options (Buna, EPDM, FKM) to suit varied industrial needs.
Product Specifications
Note Note
If you do not see exactly what you are looking for, please contact our sales department.
Technical Specs Check Valve Type
Piston
Technical Specs Crack Pressure
1 psi
Technical Specs Material
Brass
Technical Specs Maximum Pressure
500 psi
Technical Specs Maximum Working Temperature
250 ºF
Technical Specs Series
PSCV
Technical Specs Thread Size
1/8 in
Technical Specs Thread Type
Female National Pipe Thread (FNPT)
