1" Aluminum Pwr-Flo AODD Pump with PTFE Neoprene Diaphragm
1" Aluminum Pwr-Flo AODD Pump with PTFE Neoprene Diaphragm
SKU:MAN-b28517
Enhance fluid transfer with the NOMAD PWR-FLO Pump featuring durable PTFE Neoprene diaphragm
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
1" Aluminum Pwr-Flo AODD Pump with PTFE Neoprene Diaphragm
$899.99
Quantity: 1
Claim Your Seller Account
1" Aluminum Pwr-Flo AODD Pump with PTFE Neoprene Diaphragm
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid transfer system with the NOMAD PWR-FLO Pump. This air-driven double diaphragm pump, a drop-in replacement for Wilden AODD pumps, boasts a PTFE Neoprene back-up diaphragm for enhanced durability. The asymmetrical spool design ensures efficient air usage, making it ideal for handling large solids and slurries. With a chemically resistant polypropylene construction, this pump offers reliable on/off liquid transfer for filling and batching applications. Experience superior performance and longevity with the NOMAD PWR-FLO Pump.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

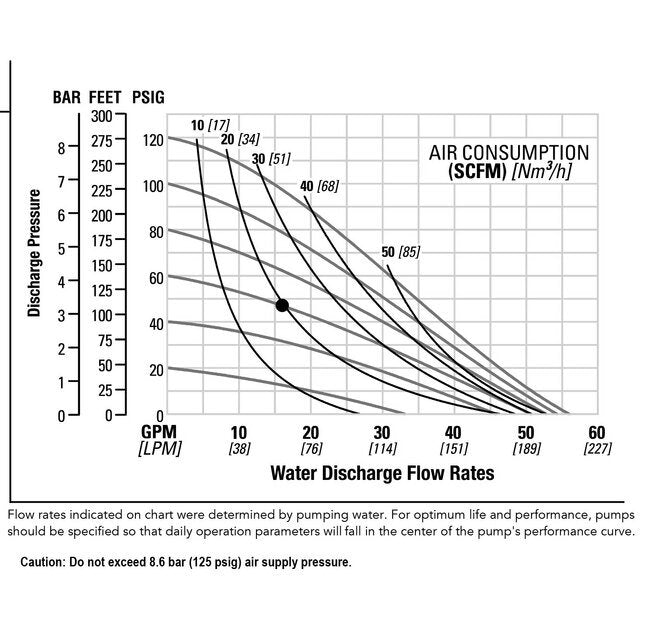

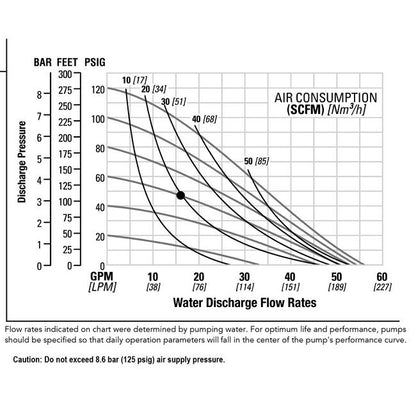

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
PTFE Neoprene back-up
Specifications Displacement Per Cycle
0.08 gal | 0.30 lit
Specifications Elastomers
PTFE, Stainless Steel
Specifications Fluid Inlet Size
1 in | 25 mm
Specifications Fluid Outlet Size
1 Flanged ANSI in | 25 Flanged ANSI mm
Specifications Height
14 Inch | 14 in | 342.90 mm
Specifications Length
15 Inch | 15 in | 0.3734 m | 373.38 mm
Specifications Max Flow Rate
56 gpm | 211.98 lpm
Specifications Model
NPF250/AAAA/TF/SS/STF/FLA/B/X
Specifications Non Wetted Material
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
250-16483-1
Specifications Solids Handling
0.08 in | 2 mm
Specifications Wetted Moc
Aluminum
Specifications Width
11 Inch | 11 in | 0.2870 m | 287.02 mm
