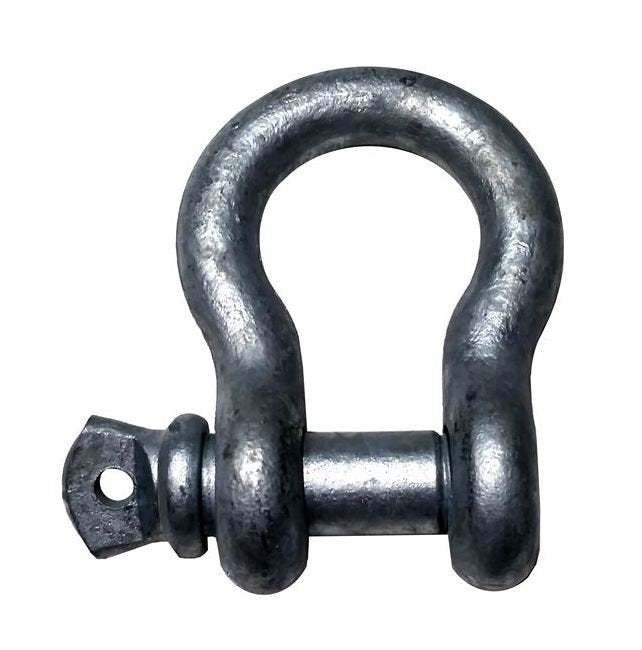

1" Anchor Shackles Screw Pin Galvanized, Grade A, 8.5T WLL

1" Anchor Shackles Screw Pin Galvanized, Grade A, 8.5T WLL

SKU:WIR-e9d559

Heavy-duty 1" Anchor Shackle, Hot Dip Galvanized, Grade A, 8.5T WLL - RR-C-271D Compliant

Regular price $45.99
Regular price Sale price $45.99
Sale

Initiate Order

1" Anchor Shackles Screw Pin Galvanized, Grade A, 8.5T WLL

1" Anchor Shackles Screw Pin Galvanized, Grade A, 8.5T WLL

$45.99

Quantity: 1

Claim Your Seller Account

1" Anchor Shackles Screw Pin Galvanized, Grade A, 8.5T WLL

1" Anchor Shackles Screw Pin Galvanized, Grade A, 8.5T WLL

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1" Anchor Shackles Screw Pin Hot Dip Galvanized Drop Forged is designed to meet the rigorous requirements of Federal Specification RR-C-271D, Type IV A, Grade A, Class 2. With a proof load of 2.2 times the working load limit and an ultimate load of 6 times the working load limit, this shackle ensures exceptional strength and durability. Ideal for lifting or towing applications, this shackle offers precise nominal size and dimensions to fit various wire rope loops. Trust in its quenched, tempered, and alloy pin design for reliable performance in demanding settings.

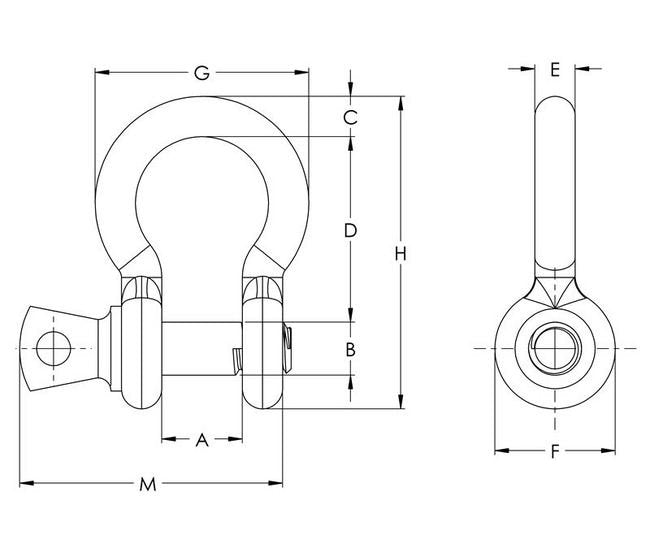

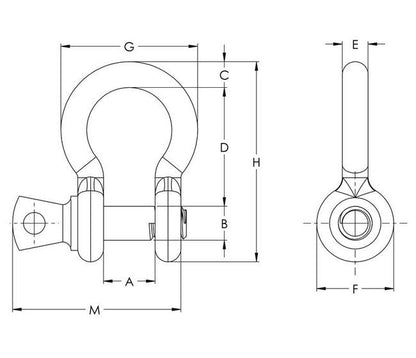

Product Specifications

Specifications A In
1.69
Specifications B In
1.13
Specifications C In
1.06
Specifications D In
3.75
Specifications E In
1
Specifications F In
2.38
Specifications G In
4.69
Specifications H In
6.56
Specifications M In
5.07
Specifications Nominal Size In
1
Specifications Weight Lbs
5.03
Specifications Wll Tons
8 1/2
CAGE
0T9L4
NAICS
332999
PSC
5340
