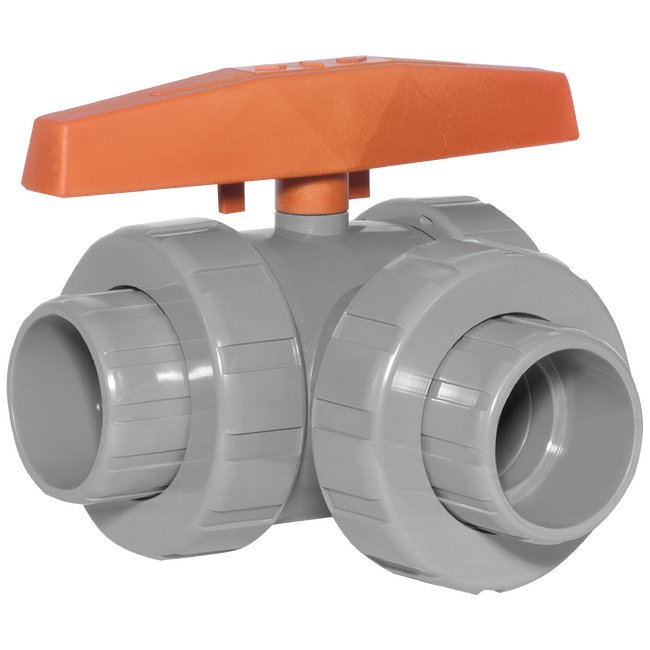

1" CPVC 3-Way Lateral True Union Ball Valve with EPDM O-Rings
1" CPVC 3-Way Lateral True Union Ball Valve with EPDM O-Rings
SKU:TRU-7af4fd
Durable 1" CPVC 3-Way Lateral Ball Valve with EPDM O-Rings, ensures reliable flow diversion with socket/threaded connections.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
1" CPVC 3-Way Lateral True Union Ball Valve with EPDM O-Rings
$39.99
Quantity: 1
Claim Your Seller Account
1" CPVC 3-Way Lateral True Union Ball Valve with EPDM O-Rings
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1" CPVC 3-Way Lateral True Union Ball Valve from our LA Series allows seamless diversion of flow between center, left, or right ports without an OFF position. Crafted with durable CPVC body material and EPDM seals, this valve with socket/threaded end connections ensures reliable performance. With optimal dimensions and a Cv Factor of 10, it meets institutional procurement standards for efficiency and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications A
3.00 in | 76.20 mm
Specifications B
2.98 in | 75.69 mm
Specifications Body Material
CPVC
Specifications C
4.14 in | 105.16 mm
Specifications Cv Factor
10
Specifications E
4.00 in | 101.60 mm
Specifications End Connection
Socket/Threaded
Specifications F
4.77 in | 121.16 mm
Specifications G
8.50 in | 215.90 mm
Specifications H
3.23 in | 82.04 mm
Specifications Seals
EPDM
Specifications Size
1"
