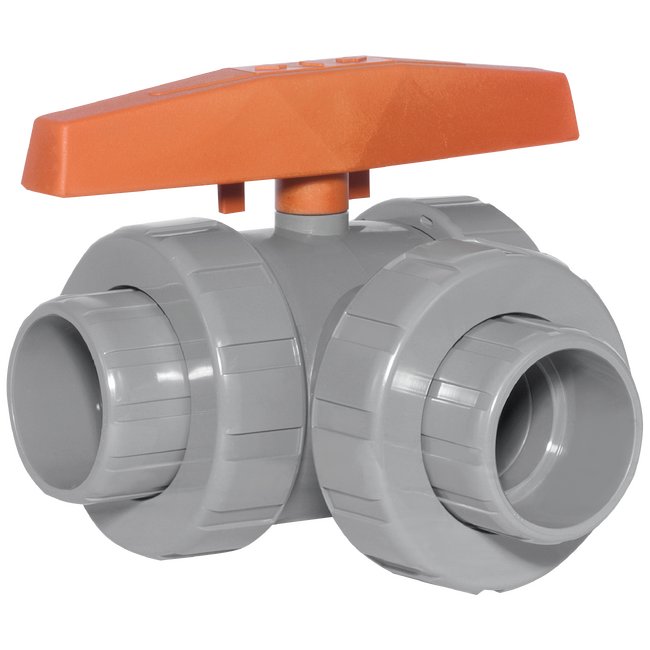

1" CPVC 3-Way Lateral True Union Ball Valves with FPM Seals, Flanged End Connections
1" CPVC 3-Way Lateral True Union Ball Valves with FPM Seals, Flanged End Connections
SKU:TRU-de8d54
High-performance 1" CPVC 3-Way True Union Ball Valve with FPM Seals & Flanged Ends, rated @ 150PSI
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
1" CPVC 3-Way Lateral True Union Ball Valves with FPM Seals, Flanged End Connections
$89.99
Quantity: 1
Claim Your Seller Account
1" CPVC 3-Way Lateral True Union Ball Valves with FPM Seals, Flanged End Connections
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1" CPVC 3-Way Lateral True Union Ball Valve from our LA Series offers exceptional flow control with the ability to divert flow from the center port to the left or right ports seamlessly. Designed with precision, this valve boasts a CPVC body, FPM o-rings, and reliable flanged end connections. With a Cv factor of 10, this valve ensures optimal performance and is rated @ 150PSI, meeting the highest industry standards. Available in various sizes, this valve is a versatile solution for industrial applications requiring precise fluid regulation.
Product Specifications
Specifications A
3.00 in | 76.20 mm
Specifications B
2.98 in | 75.69 mm
Specifications Body Material
CPVC
Specifications C
4.14 in | 105.16 mm
Specifications Cv Factor
10
Specifications E
4.00 in | 101.60 mm
Specifications End Connection
Flanged
Specifications F
4.77 in | 121.16 mm
Specifications G
8.50 in | 215.90 mm
Specifications H
3.23 in | 82.04 mm
Specifications Seals
FPM
Specifications Size
1"
