1" CPVC 3-Way True Union Ball Valves with Flanged End Connections

Name: 1" CPVC 3-Way True Union Ball Valves with Flanged End Connections
Brand: Hayward Flow Control
SKU: TRU-27f452
Price: 69.99 USD
Availability: OutOfStock

SKU:TRU-27f452

High-quality 1" CPVC 3-Way True Union Ball Valves with Flanged Connections for reliable flow control. Suitable for various applications.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1" CPVC 3-Way True Union Ball Valves with FPM o-rings and flanged end connections are designed for versatile flow configurations. Crafted from robust CPVC with FPM seals, these valves ensure durability and efficient performance. With precise dimensions meeting industry standards, these valves offer reliable service in a range of applications. Available in sizes up to 2", these valves are ideal for commercial, industrial, and institutional use.

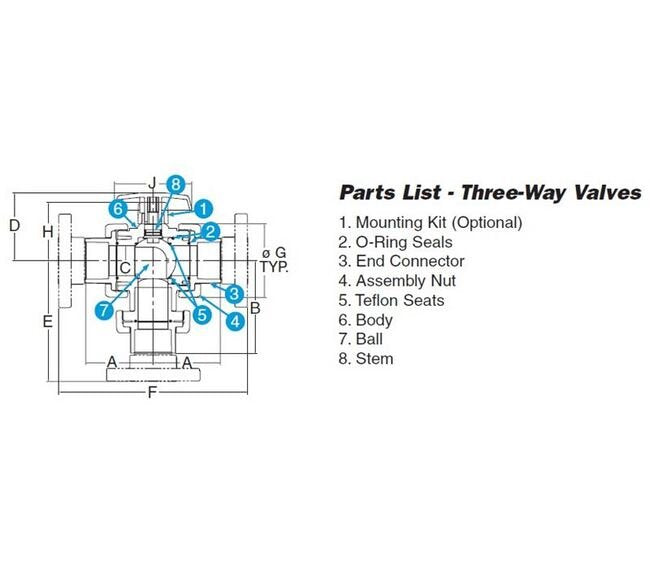

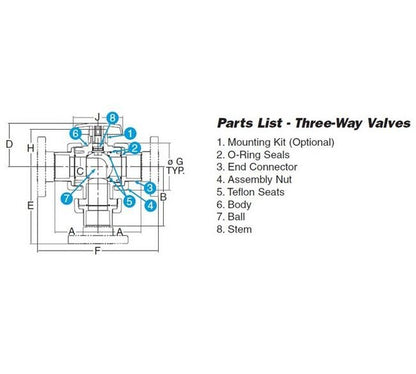

Product Specifications

Specifications A

2.99 in | 75.82 mm

Specifications B

4.14 in | 105.16 mm

Specifications Body Material

CPVC

Specifications C

1.00 in | 25.40 mm

Specifications Cv Factor

Specifications D

3.21 in | 81.53 mm

Specifications E

4.77 in | 121.16 mm

Specifications End Connection

Flanged

Specifications F

8.50 in | 215.90 mm

Specifications G

3.00 in | 76.20 mm

Specifications H

3.08 in | 78.23 mm

Specifications J

4.00 in | 101.60 mm

Specifications Seals

FPM

Specifications Size

1" CPVC 3-Way True Union Ball Valves with Flanged End Connections
